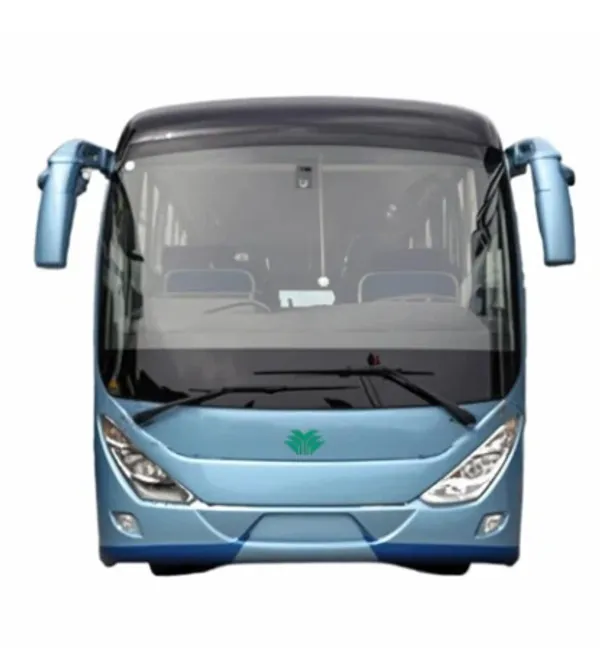

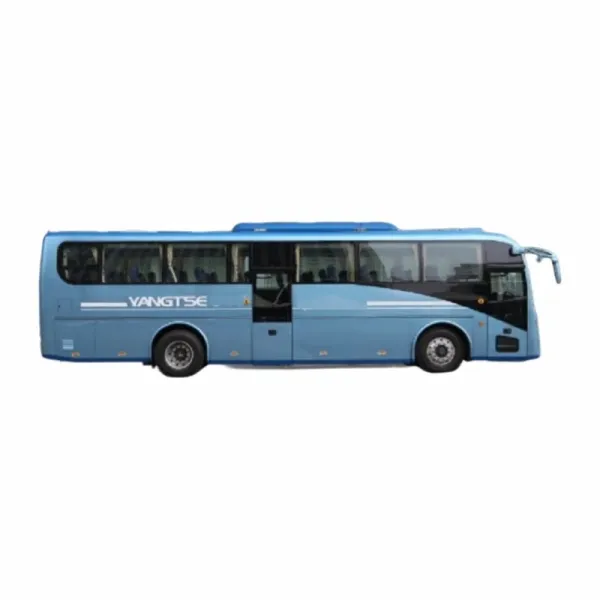

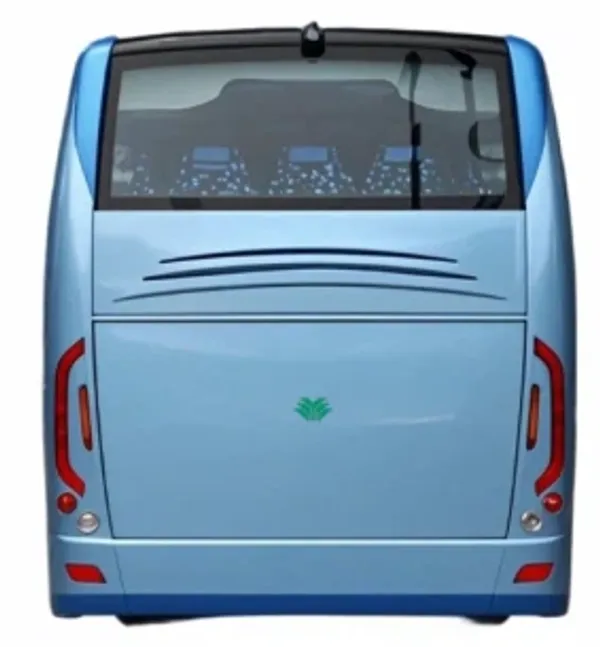

Electric Coach 11m

Details

Overall vehicle size (mm): 10990 x 2500 x 3400
Interior Height (mm): 2250
Wheelbase (mm): 5600
Front/Rear Suspension (mm): 2140 / 3250
First Step Height (mm): ≤ 360
Curb Weight (kg): 18000
Passenger Capacity (Person/Seat): 47 + 1
Maximum Speed (km/h): 69
Minimum Turning Diameter (m): < 23
Maximum Gradeability (%): 18
Energy Density (Wh/kg): ≥ 160
Cruise Range (km): ≥ 250

Share to

Send Inquiry

It is an 11-meter electric road bus designed for long-distance tourism and intercity transportation, combining spacious interiors, zero-emission efficiency, and advanced safety features. Built with a robust load-bearing body structure, this bus offers superior comfort and reliability for extended journeys, making it ideal for tourist routes, charter services, and intercity shuttles.

Parameter

Components Configurations

Front Axle	7.5T Disc Type
Rear Axle	11T Disc Type, New Energy-Specific Main Reduction Gear (Dena / Fangsheng)
Suspension	Front 2 + Rear 4 Airbags (Bosch / China Highway)
Steering System	Integrated Electrohydraulic Booster Pump
Braking System	Oil Piston Air Pump, Dual-Circuit Air Brake, Front/Rear Disc Brakes
Tyre	295/80R22.5
Storage Battery	120Ah × 12V × 2 (Dual Battery Setup)
Lubrication System	AR60H Aote Automatic Lubrication Device
Motor Cooling	Intelligent Cooling System
Power Battery Type	LFP (CATL)
Cell Specification	3.20V / 230AH
Total Energy Capacity (kWh)	282
Charge Rate	1C
Drive System	Permanent Magnet Synchronous Motor
Motor Manufacturer	Yangtse Automobile Group
Nominal Voltage (Energy Storage) (V)	614.4
Rated/Peak Power (kW)	150 / 260
Rated/Peak Torque (N·m)	1200 / 3000
Cooling Mode	Liquid Cooling

Body & Interior

Body Structure	Load-Bearing Monocoque Design
Interior	Molded Trim, 1mm Quartz Sand Floor Leather (GAHA-2200), GFP Aluminum Air Ducts
Doors	Pneumatic Single Sliding Doors (Front & Rear), Aluminum Alloy Construction
Glass System	- Front Windshield: 7.76mm Laminated Glass - Rear/Side Glass: 5.0mm (Laminated for 50-60% Light Transmittance, Tempered Otherwise)
Rearview System	Electric Power-Adjustable Rearview Mirrors
Climate Control	Dual-Zone Air Conditioning (with PTC Heating), Fuel Oil Heater Integrated
Defrost System	3kW High-Voltage Electric Defrosting
Audio-Visual	MP3 Player with Public Address System
Lighting	Integrated Front & Rear Combination Headlights, LED Signal Lights
Wiper System	High-Performance Windshield Wipers with Washer System
Electrical System	Three-Level CAN Bus Instrument Cluster
Telematics	Remote Data Monitoring System (Service Valid Until Vehicle Retirement)
High-Voltage System	Integrated Power Supply, High-Voltage Distribution Cabinet, Insulation Monitor
Paint Finish	Metallic Paint (Custom Colors Available Upon Request)
Safety Equipment	- 4 × 4kg Fire Extinguishers - 2 × Non-Ventilated Sunroofs - Warning Triangle, Electric Horn, Digital Tachograph

Key Features

This type of city bus features a powerful electric powertrain with CATL LFP batteries (282 kWh, 1C charging, liquid cooling) and a PM synchronous motor (150/260 kW power, 1200/3000 N·m torque), offering ≥250 km cruising range and 69 km/h max speed. It ensures passenger comfort with 47 seats, a low-first-step design, molded interiors, quartz sand flooring, and dual-zone AC with PTC heating. Safety highlights include a load-bearing body, impact-resistant glass, Bosch airbag suspension, dual-circuit disc brakes, and 4×4 kg fire extinguishers, while advanced systems like a 3kW defrosting system, CAN bus instruments, and remote monitoring enhance reliability and ease of maintenance.

Components Configurations

Front Axle	7.5T Disc Type
Rear Axle	11T Disc Type, New Energy-Specific Main Reduction Gear (Dena / Fangsheng)
Suspension	Front 2 + Rear 4 Airbags (Bosch / China Highway)
Steering System	Integrated Electrohydraulic Booster Pump
Braking System	Oil Piston Air Pump, Dual-Circuit Air Brake, Front/Rear Disc Brakes
Tyre	295/80R22.5
Storage Battery	120Ah × 12V × 2 (Dual Battery Setup)
Lubrication System	AR60H Aote Automatic Lubrication Device
Motor Cooling	Intelligent Cooling System
Power Battery Type	LFP (CATL)
Cell Specification	3.20V / 230AH
Total Energy Capacity (kWh)	282
Charge Rate	1C
Drive System	Permanent Magnet Synchronous Motor
Motor Manufacturer	Yangtse Automobile Group
Nominal Voltage (Energy Storage) (V)	614.4
Rated/Peak Power (kW)	150 / 260
Rated/Peak Torque (N·m)	1200 / 3000
Cooling Mode	Liquid Cooling

Body & Interior

Body Structure	Load-Bearing Monocoque Design
Interior	Molded Trim, 1mm Quartz Sand Floor Leather (GAHA-2200), GFP Aluminum Air Ducts
Doors	Pneumatic Single Sliding Doors (Front & Rear), Aluminum Alloy Construction
Glass System	- Front Windshield: 7.76mm Laminated Glass - Rear/Side Glass: 5.0mm (Laminated for 50-60% Light Transmittance, Tempered Otherwise)
Rearview System	Electric Power-Adjustable Rearview Mirrors
Climate Control	Dual-Zone Air Conditioning (with PTC Heating), Fuel Oil Heater Integrated
Defrost System	3kW High-Voltage Electric Defrosting
Audio-Visual	MP3 Player with Public Address System
Lighting	Integrated Front & Rear Combination Headlights, LED Signal Lights
Wiper System	High-Performance Windshield Wipers with Washer System
Electrical System	Three-Level CAN Bus Instrument Cluster
Telematics	Remote Data Monitoring System (Service Valid Until Vehicle Retirement)
High-Voltage System	Integrated Power Supply, High-Voltage Distribution Cabinet, Insulation Monitor
Paint Finish	Metallic Paint (Custom Colors Available Upon Request)
Safety Equipment	- 4 × 4kg Fire Extinguishers - 2 × Non-Ventilated Sunroofs - Warning Triangle, Electric Horn, Digital Tachograph

Detail

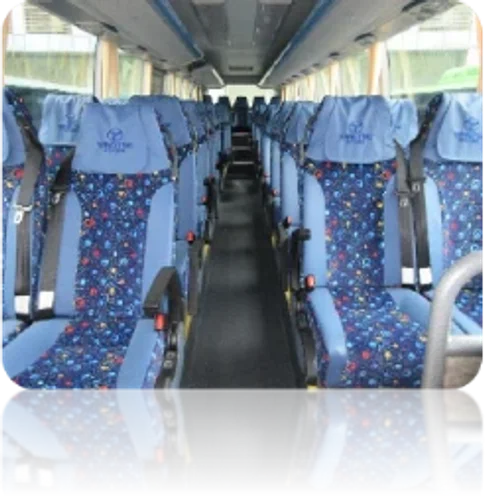

Accommodates 47 passengers with ergonomic seats (+1 driver seat), featuring a spacious interior height of 2250 mm. The low-first-step design (≤360 mm) enhances boarding convenience.
