Founded in 1929, Yangtse Automotive Group Co., Ltd. is a century-old Chinese automobile company. Under a strategic plan to comprehensively expand into new energy buses, special vehicles, construction machinery, photovoltaics, energy storage, charging stations, and other related industries, Yangtse Automotive Group Co., Ltd. completed its reorganization and brand renewal in 2023 — marking the beginning of a new era in comprehensive new energy solutions for Yangtse Automotive Group Co., Ltd.
Electric Road Maintenance VehicleTank volume (m³): 2.3View More
Rated load capacity (kg): 1650
Battery capacity (kWh): CATL 55.7

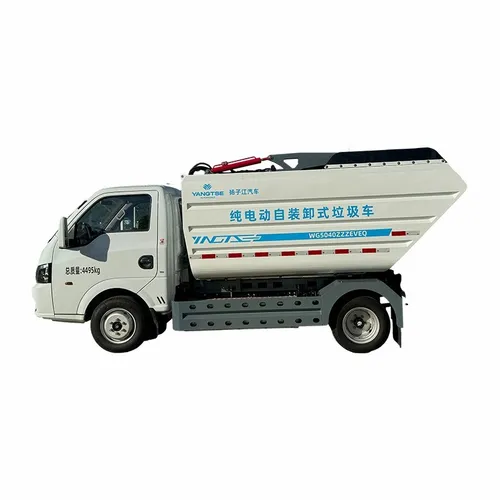

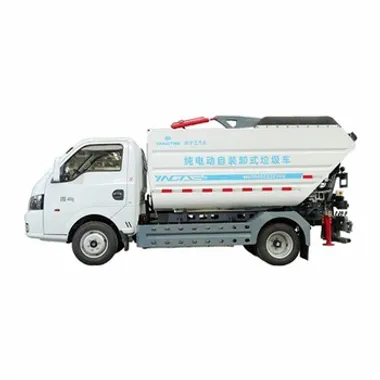

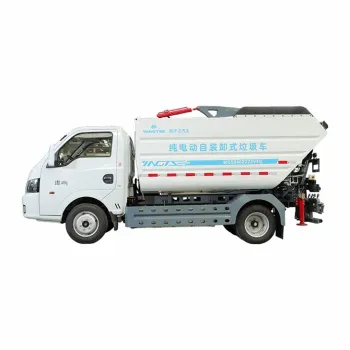

Electric Auto-loading Garbage TruckCargo volume (m³): 4.5View More
Rated load capacity (kg): 1150
GVW (kg): 4495

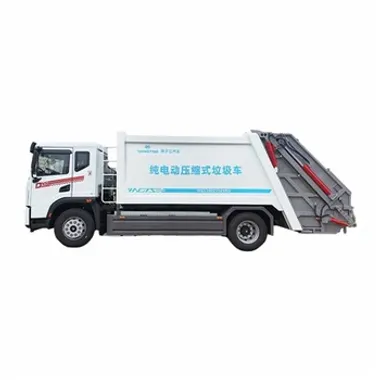

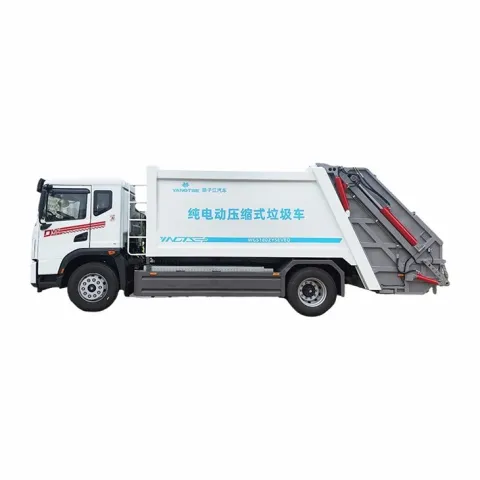

Electric Compressed Garbage TruckCargo volume (m³): 8.5View More
Rated load capacity (kg): 5100
Battery capacity (kWh): CATL 140.95

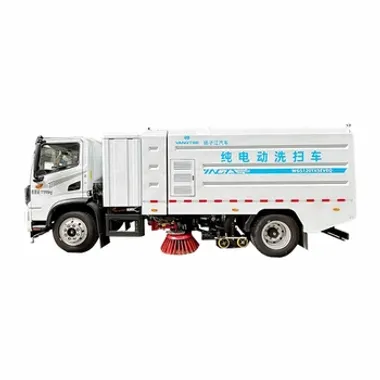

Electric Road Sweeper VehicleFresh water/sewage tank volume (m³): 8.5/7View More
Battery capacity (kWh): CATL 196
Sweeping width (m): 3.5

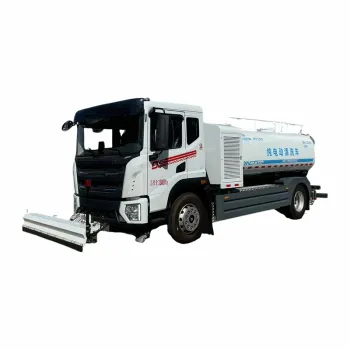

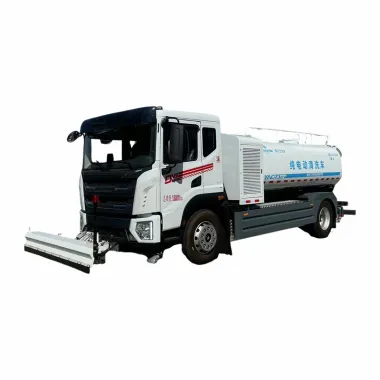

Electric Road Cleaning TruckTank volume (m³): 9.2View More
Rated load capacity (kg): 9200
High-pressure cleaning width (mm): 3500
Why choose us
Certificate
The company holds national qualifications for the production of new energy vehicles and has passed both 3C certification and TS16949 quality system authentication. It has fully independent R&D capabilities in pure electric vehicles, including batteries, motors, and electric control systems. Yangtse Automotive Group Co., Ltd. has also won the Gold Medal at the CIBC China International Bus Competition for six consecutive years.
Market
Our products have been exported to Thailand, Myanmar, Bangladesh, Malaysia, Russia, Bolivia, Peru, and other countries. In the context of the "One Belt, One Road" initiative, our overseas market share has continued to grow year by year.
We Offer Multi-Scenario Solutions
Our all-in-one photovoltaic charging solutions are customized to meet the needs of various usage scenarios. No matter the circumstance, we always deliver the ideal solution for you.
Service
Yangtse Automotive Group Co., Ltd. has a complete and effective quality assurance system and process. Strict control procedures are in place at every stage — from planning, design, and production preparation to incoming parts inspection, manufacturing, final inspection, and after-sales service. These processes ensure that no defective products are designed, accepted, produced, or delivered, and that any quality issues are promptly identified and corrected.

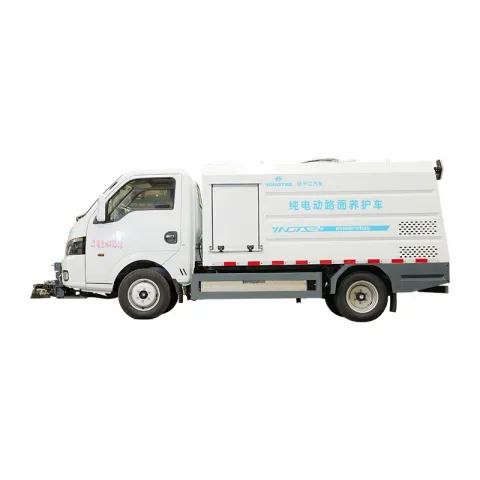

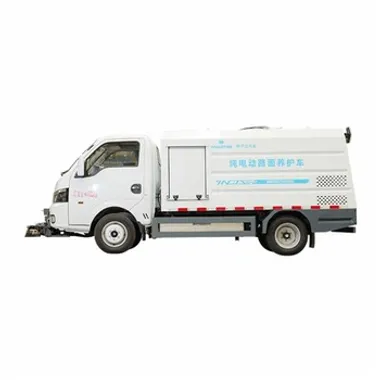

Electric Road Maintenance Vehicle
The model is compact, flexible, fully equipped, versatile, easy to operate, and reliable in operation. It is very suitable for cleaning operations such as road cleaning, dirty spot removal, trash can cleaning, and small advertisement removal in urban sidewalks, pedestrian streets, and other areas.
Parameter
Dimensions (mm) | Length × Width × Height | 5480×1800×2150 | ||
Front overhang/rear overhang | 1180/1185 | |||
Wheelbase | 2800 | |||
Front track/Rear track | 1390/1240 | |||
Minimum ground clearance | 200 | |||
Mass (kg) | Total mass/curb mass/load | 4495/2760/1605 | ||
Passability | Approach angle/departure angle (°) | 12/18 | ||
Minimum turning diameter (m) | 14 | |||
Dynamics | Maximum speed (km/h) | 90 | ||
Maximum climbing grade (%) | 20 | |||
Economical | Energy consumption (wh/km) | 253 | ||
Driving range (km) (constant speed) | 220 | |||
Chassis | Manufacturer | Dongfeng Motor Corporation | ||
Cab | Number of passengers allowed (persons) | 2 | ||
Tire | Tire specifications | 185R15LT 8PR | ||
Quantity | 6 | |||
Suspension | Front suspension | Leaf spring non-independent suspension | ||
Rear Suspension | Leaf spring non-independent suspension | |||
Power motor | Manufacturer | JINGJIN MOTOR TECHNOLOGY CO., LTD. | ||
Type/Cooling method | Permanent magnet synchronous/liquid cooling | |||
Rated power/peak power (kw) | 42/100 | |||
Torque Rated/peak (Nm) | 90/230 | |||
Protection level | IP67 | |||
Type | AMT | |||
Power battery | Total power (kwh)/type | 55.7/Lithium Iron Phosphate | CATL | |
Charging method/protection level | DC fast charging/IP67 | |||
Steering system | Steering gear type | Recirculating ball | ||
Power type | Hydraulic | |||
Braking system | Type | Vacuum assisted hydraulic dual circuit brake | ||
Power mode | Vacuum Assist | |||
Air conditioner | Type | Electric cooling and heating | ||
Special device | Cabinet | Material | 304 Stainless Steel | |
Water tank capacity (m3) | 2.5 | |||
High pressure plunger pump | Rated flow rate (l/min) | 42 | UDOR | |
Rated pressure (MPA) | 17 | |||
Speed (r/min) | 1350 | |||
Power (kw) | 15 | |||
High pressure hose reel | Quantity | 1 | ||
High pressure water gun | Quantity | 6 | ||
Other Configuration | 1) Install a camera at the rear; | |||
2) Equipped with high-pressure water gun and water hose reel (15 meters); | ||||
3) Cab touch screen control; | ||||
4) Set high and low water level alarms on the clean water tank; | ||||
5) Set up music speakers, warning lights and arrow direction lights; | ||||
6) The vehicle is equipped with a tool kit, a triangle warning sign, a jack, a fire extinguisher, a reflective vest, and 2 parking wedges. | ||||
Optional | 1) Reversing image, front camera; | |||
2) Front double-point spray assembly, hand-push mobile cleaning rack, rear spray device, floor washing, 5 types of nozzles; | ||||
Product Details
Cab
The dashboard in the cab is equipped with an optional standard GPS positioning terminal. It includes an onboard fault self-diagnosis system and a reserved OBD communication interface.
Battery
Reliable endurance. The battery is from a top-tier brand, offering stable performance, long service life, and guaranteed quality. A full charge provides up to 8 hours of operating time.
Travel Motor, Controller, and Tires
Equipped with a permanent magnet synchronous motor, delivering strong power and stable performance. The vehicle offers excellent load-bearing capacity, wear resistance, and leak prevention, along with a long service life and high protection level for safe operation.
Water Tank
Features a one-piece, rotationally molded PE water tank that is anti-aging, corrosion-resistant, and leak-proof. The tank has a long service life and a capacity of 1000 liters.
Front Flushing Function
Utilizes an adjustable rotating joint with a flushing width of 6–8 meters. The side flushing system enables precise cleaning in all directions — left, right, up, and down — effectively handling dirt and debris along curbstones.
High-Pressure Flushing System
Delivers strong power, high pressure, and reliable performance. The diverter is made of all-aluminum and controlled by an electric rod, offering precise positioning, a compact design, and durability for frequent operation.
One-Piece Welded Box
Made from high-quality Q235 steel through bending and welding, the box is rust-resistant. It comes standard with a side-mounted fire water inlet and a large top water inlet. The rear is fitted with a rolling door and a liquid level display.
One-Touch Button Operation
A control panel with button switches is installed in the cab, allowing for easy operation of the following functions: front flush on/off, left flush on/off, right flush on/off, water pump on/off, hose reel on/off, and upper load start/stop.
Multi-Function
In addition to the standard flushing and hose reel functions, the vehicle is equipped with a handheld high-pressure water gun — ideal for cleaning trash bins, removing small ads, and more. A handheld flushing tray is also available for added convenience.
Product Highlights
- Box: High Quality High-Strength Steel Plate, Three Sides Of The Box Are Curtain Type Box Doors For Fire Trucks, Which Are Divided Into Storage Tank, Water Tank And Operation Device Cabin, With Beautiful Atmosphere;
- Flushing System: Lower Side Flushing, Front High Pressure Discharge And Multi Angle Flushing Device, And Rear Washing Cart, Washing Site And High Pressure Water Gun;
- Water Pump System: Compound Excitation Brushless DC Motor With Large Flow And High Pressure Water Pump Imported From Italy, Stable Performance.
Main Advantages of the Product
Superior Performance The tank features an advanced box structure. The water tank adopts a single-layer carbon steel tile design, offering a sleek appearance and strong integration with the chassis cab. A manhole cover is installed on the top to facilitate maintenance and cleaning. High Quality Equipped with premium accessories, including a high-pressure pump and top-brand motor (from well-known manufacturers such as Zhejiang Danong and CATL [Ningde Times]).
Safe and Reliable
Low Water Level Alarm System
When the water level drops to a preset level, the sensor triggers an alarm, and the in-vehicle buzzer emits a loud warning sound, prompting the user to shut off the pump motor immediately. The use of dual water level sensors greatly enhances system reliability.
Front and Rear Camera System
A front-facing camera allows the driver to monitor the spray frame and eliminate blind spots on the right front side, improving both safety and operational precision. A rear-view camera significantly enhances vehicle safety during reversing.
Multi-Functional Design
The vehicle is equipped with a spray frame, fixed-point cleaning system, handheld spray gun, and cleaning cart. Optional features such as a disk cleaning device, spray nozzles, and an anti-collision roadside cleaning device can be added based on user requirements.
Easy Maintenance
The water pump and piping system are equipped with a drainage function to prevent freezing and cracking in low-temperature environments. Users can simply open the drain valve before temperatures fall below freezing, ensuring easy and effective maintenance.
FAQ
Q: What are your terms of payment?
A: 30-50% by T/T as deposit, and 70% by T/T before delivery. We will show you the photos and videos of the products and packages before you pay the balance.
Q: How about the delivery time?
A: It depends on the type and quantity of product you need. Typically, the production cycle for one unit of a truck is 15-25 days.
Q: Why should we choose you?
A: We provide a one-stop service to all our customers, offering high-quality products at competitive prices, 24-hour high-efficiency before-and-after service, and complimentary training.
We're well-known as one of the leading special vehicle manufacturers and suppliers in China. If you're going to buy customized special vehicle, welcome to get quotation from our factory. For price consultation, contact us.
