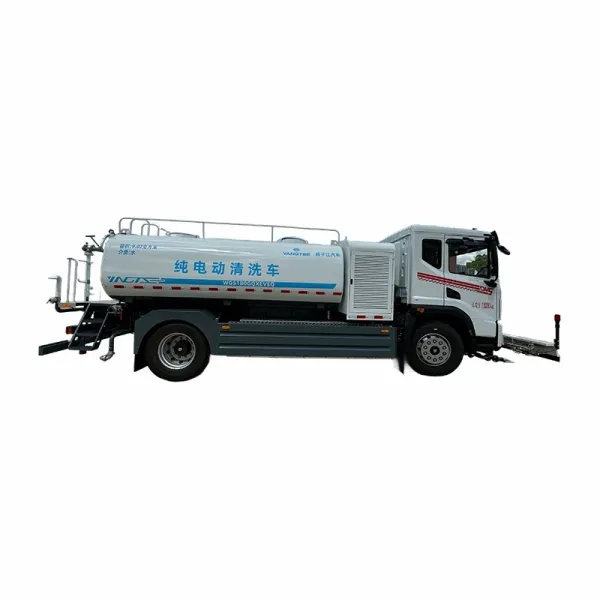

Electric Road Cleaning Truck
Details
Electric Road Cleaning Truck: 18T
Tank volume (m³): 9.2
Rated load capacity (kg): 9200
Battery capacity (kWh): CATL 196
High-pressure cleaning width (mm): 3500
Diagonal flushing width (m): 24
Operation capacity (h): 6
Rear water cannon range (m): 35
Tank volume (m³): 9.2
Rated load capacity (kg): 9200
Battery capacity (kWh): CATL 196
High-pressure cleaning width (mm): 3500
Diagonal flushing width (m): 24
Operation capacity (h): 6
Rear water cannon range (m): 35
Category
Special VehicleShare to
The electric road cleaning truck is suitable for all kinds of road washing, trees, green belts, lawn greening, roads, factories and mines construction, high-altitude building washing.
Parameter
Size (mm) | Length × Width × Height | 8995×2530×2820 |
|
| |
Front overhang/Rear Overhang | 1410/2150 |
|
| ||
Wheelbase | 4500 |
|
| ||
Front track/Rear track | 1960/1880 |
|
| ||
Minimum ground clearance | 200 |
|
| ||
Passability | Approach Angle/Departure angle (°) | 11/18 |
|
| |
Minimum turning diameter (m) | 14.5 |
|
| ||
Mass (kg) | Total mass/Curb Weight/Load capacity | 18000/8700/9105 |
|
| |
Dynamics | Maximum speed (km/h) | 100 |
|
| |
Maximum climbing grade (%) | 30 |
|
| ||
Economical | Energy consumption (wh/km) | 694 |
|
| |
Full load driving range (km) (Constant speed) | 260 |
|
| ||
Chassis | Model | EQ1180GLEVJ1 |
|
| |
Manufacturer | Dongfeng Huashen |
|
| ||
Cab | Type | Flat head, half row |
|
| |
Number of passengers allowed | 2 |
|
| ||
Flip type | Electric |
|
| ||
Wheel | Tire specifications | 295/80R22.5 16PR |
|
| |
Rim specifications | 9.00-22.5 |
|
| ||
Quantity | 6 |
|
| ||
Drive motor | Manufacturer | Huashen Motor |
|
| |
Model | TZ342XS-HSM1651 |
|
| ||
Rated/Peak Power (kW) | 123/246 |
|
| ||
Gearbox | Speed Ratio | 6.62/3.73/2.3/1.51/1/0.75 R:6.05 |
|
| |
Gear speed/Type | 6/AMT |
|
| ||
Power battery | Type | Lithium Iron Phosphate |
|
| |
Manufacturer | CATL |
|
| ||
Total power (kWh) | 190.95 |
|
| ||
Charging method | DC fast charging |
|
| ||
Special device | Tank | Material | Q345 |
|
|
Box effective volume (m³) | 9.1 |
|
| ||
High pressure water pump | Rated flow rate (L/min) | 131 |
|
| |
Rated pressure (MPa) | 10 |
|
| ||
Rated speed (r/min) | 860 |
|
| ||
Adjustable speed (r/min) | 700/1000 |
|
| ||
Model | KF36 |
|
| ||
Brand | AR (Italy) |
|
| ||
Safety valve opening pressure (MPa) | 14 |
|
| ||
High pressure water circuit | Ball valve | Stainless steel high pressure ball valve, pneumatically driven, electrically controlled |
|
| |
Connectors | Stainless steel or brass parts |
|
| ||
Pressure valve set pressure (MPa) | 10 |
|
| ||
Nozzle material | Stainless steel |
|
| ||
Number of front nozzles | 22 |
|
| ||
Number of rear nozzles | 15 (Spray) |
|
| ||
Front corner spray | One on each side |
|
| ||
Low pressure water pump | Type | Centrifugal |
|
| |
Manufacturer | Zhejiang Weilong Pump Industry Co., Ltd. |
|
| ||
Model | 80QZF-50/110N |
|
| ||
Flow (m³/h) | 50 |
|
| ||
Head (m) | 110 |
|
| ||
Low pressure waterway | Ball valve | Manual ball valve + Pneumatic or electric shut-off valve |
|
| |
Water pipe | Galvanized pipe |
|
| ||
Rear sprinkler | Aluminum Alloy |
|
| ||
Central Hedge | One on each side |
|
| ||
Rear fan sprinkle | One on each side |
|
| ||
Rear side spray | One on each side |
|
| ||

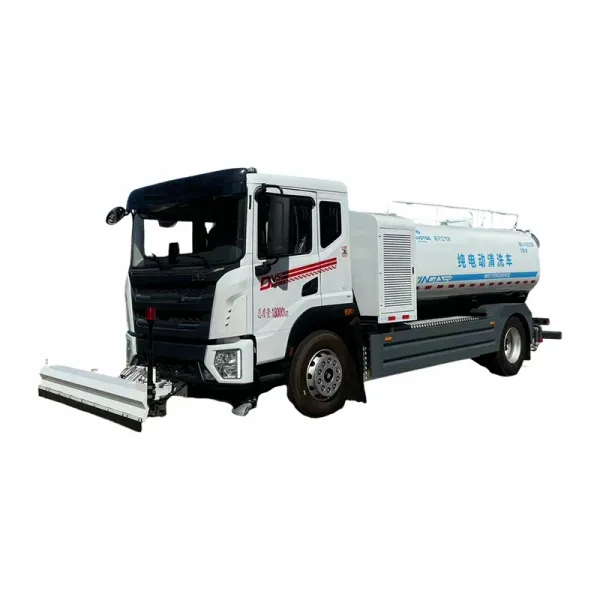

Special functions - High voltage | Front spray rack cleaning width (mm) | ≥3500 |
|
| |
Front spray rack swing angle (°) | Left and right 30 |
|
| ||
Cleaning speed (km/h) | 5-15 |
|
| ||
Operation efficiency (m²/h) | 5250 |
|
| ||
Continuous operation time at full charge (h) | 6 |
|
| ||
Working time of one tank of water (h) | 1 |
|
| ||
Special functions - Low voltage | Middle hedge sprinkler width (m) | ≥24 |
|
| |
Rear spray width (m) | ≥24 |
|
| ||
Rear water gun range (m) | 36 |
|
| ||
Rear fan sprinkler width (m) | 20 |
|
| ||
Sprinkling speed (km/h) | 5-15 |
|
| ||
Other | Equipment | Rear spray rack, cab control, low water level alarm, water level display, voice alarm, music speaker, warning lights, arrow direction lights, tool kit, warning triangle, jack, fire extinguisher, reflective vest, 2 parking wedges |
|
| |
Feature
It has the functions of water sprinkling, dust pressure, high and low level spraying, pesticide spraying, guardrail rinsing, etc. It also has the functions of water transportation, drainage and emergency fire fighting. The cleaning vehicle is mainly composed of automobile chassis, tank, water pump, ball valve and water pipeline, sprinkler device and other components. The high and low pressure pumps and motors are all national stereotyped products with good performance and reliable operation, high pressure, large flow and low power consumption when sprinkling.
Detail

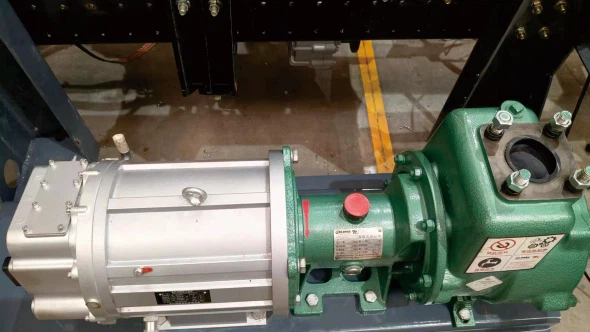

1. The high and low pressure pumps are directly connected, eliminating intermediate transmission links, high transmission efficiency and low energy consumption. Key parts such as high-pressure water pump, low-pressure water pump, high-pressure water pump drive motor, low-pressure water pump drive motor, and so on, are all adopted by well-known brands in the industry.

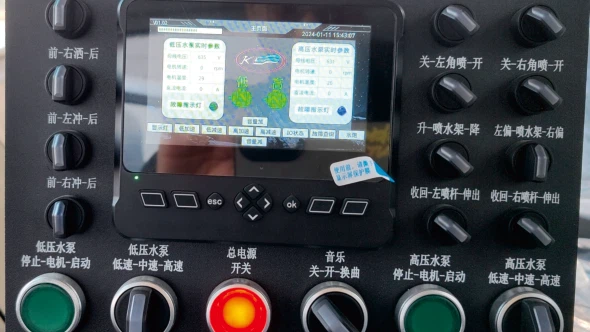

2. The control mode "Display + Controller + CAN bus operator panel" is used for several reasons. The center control panel can monitor the sensor signal status, display the fault codes, and electric parameters of the motor.

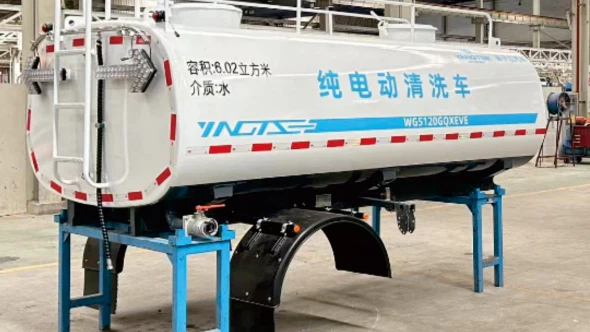

3. The tank adopts electrophoresis and powder spraying technology, with good corrosion protection effect. Tank body adopts rolled plate edging process, automatic welding, good tank molding effect.
