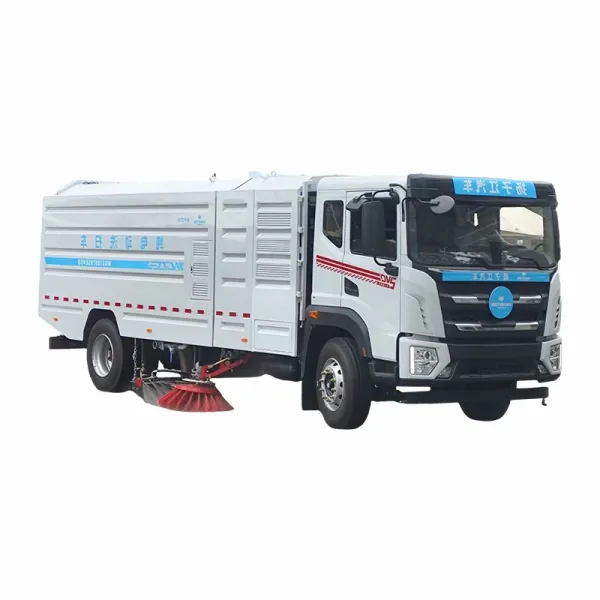

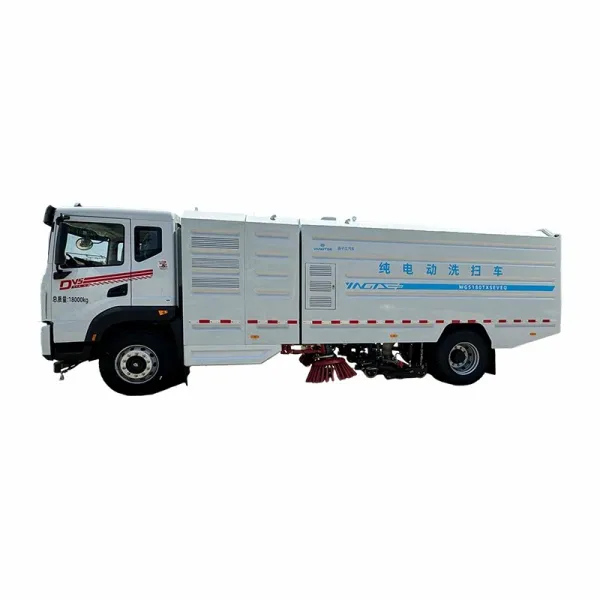

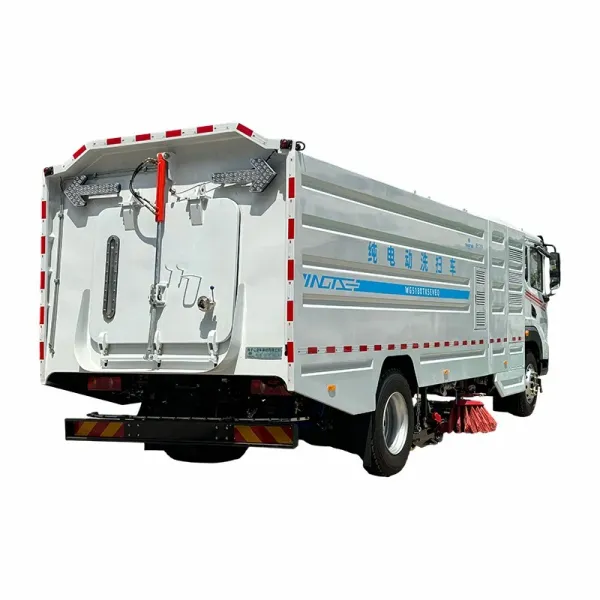

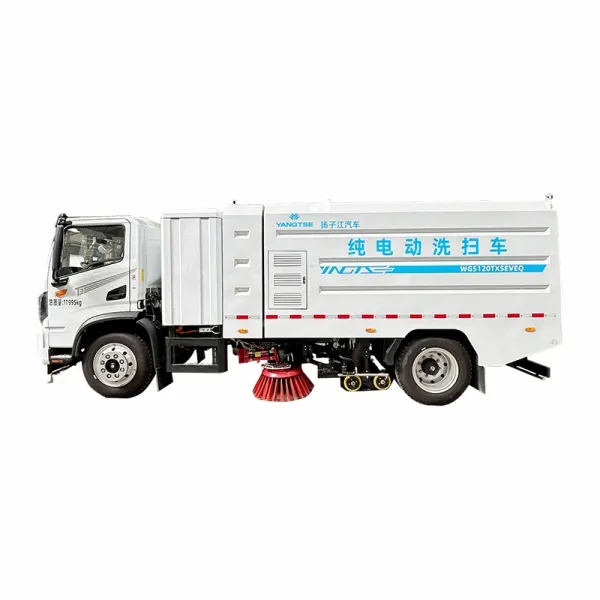

Electric Road Sweeper Vehicle
Details
Electric Road Sweeper Vehicle: 18T
Fresh water/sewage tank volume (m³): 8.5/7
Battery capacity (kWh): CATL 196
Operation capacity (h): 4-6
Sweeping width (m): 3.5
Sweeping efficiency: 95%
Operation noise (DB): 84
Fresh water/sewage tank volume (m³): 8.5/7
Battery capacity (kWh): CATL 196
Operation capacity (h): 4-6
Sweeping width (m): 3.5
Sweeping efficiency: 95%
Operation noise (DB): 84
Category
Special VehicleShare to
Combining the dual functions of sweeping and cleaning, it is an upgraded model of the traditional road sweeper, with a variety of operational functions, such as road sweeping, road scrubbing, high-pressure cleaning, kerbstone scrubbing, garbage collection and sewage recycling, spraying, and cleaning of road isolation wall.
Parameter
Size (mm) | Length × Width × Height | 8910×2550×3050 |
|
| |
Front overhang/Rear Overhang/Wheelbase | 1410/2200/5300 |
|
| ||
Minimum ground clearance | 180 |
|
| ||
Mass (kg) | Total mass/Curb Weight/Load capacity | 18000/13080/4790 |
|
| |
Dynamics | Maximum speed (km/h) | 89 |
|
| |
Maximum climbing grade (%) | 20 |
|
| ||
Economical | Energy consumption rate (wh/km) | 673 |
|
| |
Driving range (km) (Constant speed) | 365 |
|
| ||
Chassis | Dongfeng 18T Pure electric chassis | EQ1180GLEVJ1 |
|
| |
Tire | Specification/Quantity | 295/80R22.5 18PR/6 |
|
| |
Drive motor | Model/Factory | TZ380XSHS120E/HUASHEN |
|
| |
Power rated/Peak value (kW) | 123/246 |
|
| ||
Gearbox | Gear speed/Type | 6/AMT |
|
| |
Power battery | Total power (kWh) | 267.39 (515.2V/519Ah) | CATL |
| |
Charging method/Type | DC fast charging/Lithium Iron Phosphate |
|
| ||
Special device | Fan | Power rating/Peak value (kW) | 55/100 |
|
|
Cabinet | Material | 304 Stainless steel |
|
| |
Volume (m³) Clean water tank/Trash Bin | 8.5/7 |
|
| ||
High pressure water pump | Speed (r/min) | 500/1000/1450 Adjustable |
|
| |
Model/Brand | RTX150.100/AR (Italy) |
|
| ||
Cleaning system | Type | Double vertical scanning + Center wide suction cup |
|
| |
Brush drive type | Hydraulic motor |
|
| ||
Brush diameter (mm) | φ900 |
|
| ||
Brush speed (r/min) | 100/80/60 Adjustable |
|
| ||
Suction cup | Type | Double suction port wide nozzle, built-in high pressure nozzle, spring floating suspension |
|
| |
Straw inner diameter (mm) | 2×φ180 |
|
| ||
Left and right spray boom | Type/Drive mode | Swing/Pneumatic/Electric |
|
| |
Dedicated Features | Sweeping width (m) | 3.5 |
|
| |
Front corner spray flushing width (m) | 20 |
|
| ||
Sweeping speed (km/h) | 5-15 |
|
| ||
Operation efficiency | ≥95% |
|
| ||
Continuous operation time at full charge (h) | 4-6 |
|
| ||
Other | Equipment | Rear spray rack, high-pressure water cleaning system, sweeping disc spray system, lighting system, cab knob control, rear camera, right sweeping plate camera, low water level alarm, sewage level sensor, rear observation window, clean water tank level gauge, voice alarm, music speaker, arrow direction light, tool kit, warning triangle, jack, fire extinguisher, reflective vest, 2 parking wedges |
|
| |
Optional | Features | 360° panoramic image, low-pressure sprinkler system, reversing radar |
|
| |
Feature
It can complete sweeping, high-pressure cleaning and collection of garbage and sewage in one operation, and realize high-pressure rinsing on the road surface while sweeping the road surface, with good cleaning effect and no dust, suitable for sweeping, cleaning, washing and sweeping cleaning operations in city squares, road surfaces and road edges.
Detail

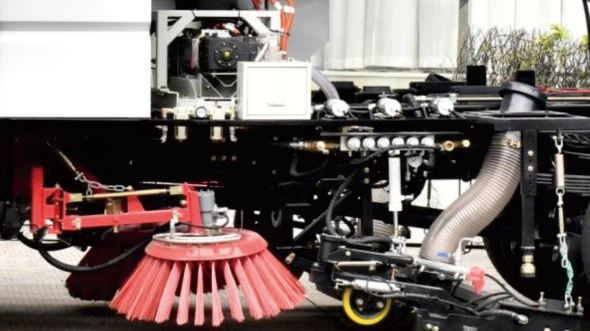

1. One-piece stamping and wide suction nozzle structure, can suction the maximum diameter of more than 10 centimeters of garbage, rinsing pressure up to 12Mpa, cleaning rate of up to 95%, adapted to the main road sweeping operations.

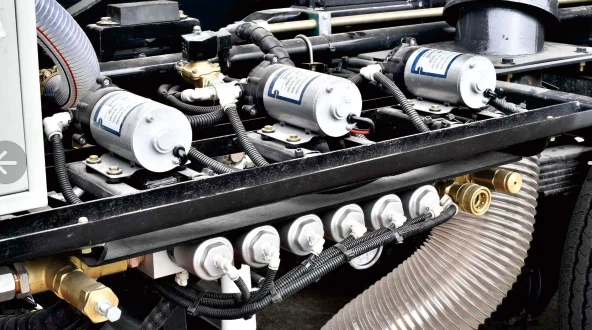

2. Pneumatic actuator controls the opening and closing of high pressure ball valve. When the high pressure pump starts and the working mode is switched, the water circuit system can unload automatically, and there is a low water level sensing alarm system in the water tank to prevent the damage of the water pump from lack of water.

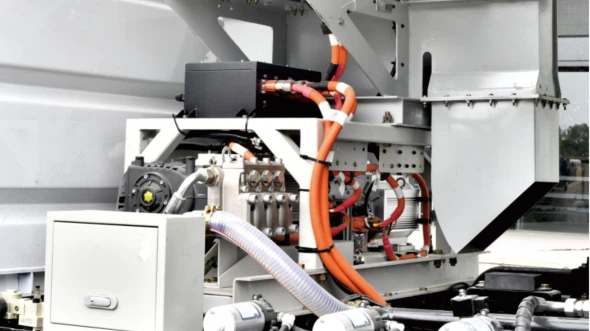

3. With original motor direct drive fan, oil pump and water pump patent technology, it's a high level integration product. High transmission efficiency, low noise, large suction power, lightweight, stable and reliable performance.
