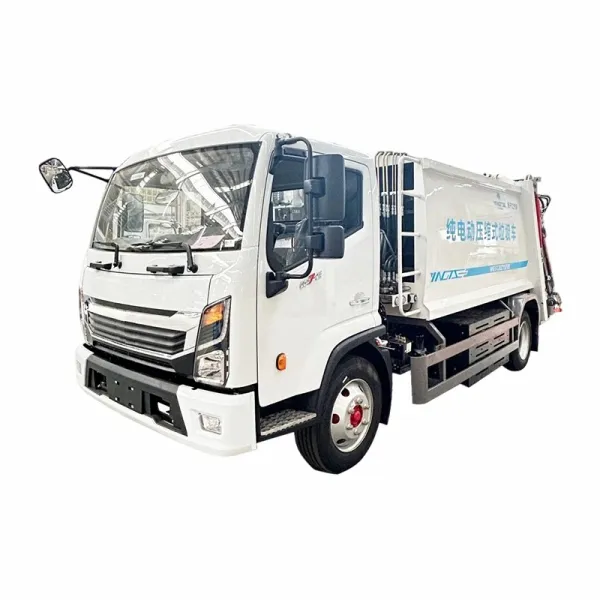

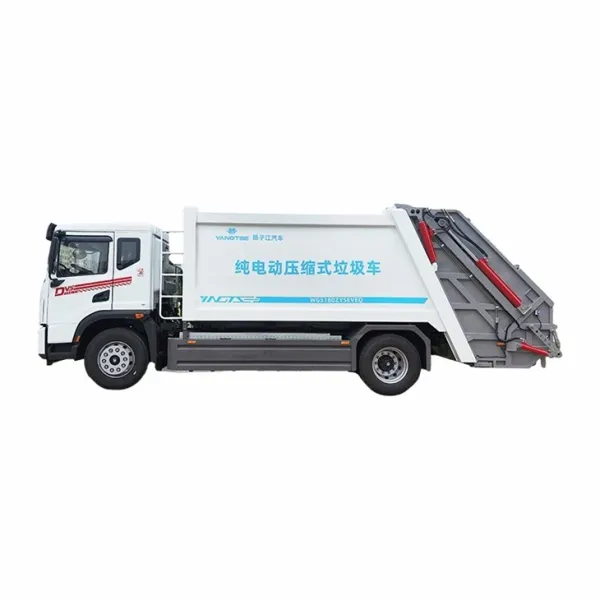

Electric Compressed Garbage Truck
Details
Electric compressed garbage truck: 12T
Cargo volume (m³): 8.5
Rated load capacity (kg): 5100
GVW (kg): 11995
Battery capacity (kWh): CATL 140.95
Operation capacity (h): 6-7
Cargo volume (m³): 8.5
Rated load capacity (kg): 5100
GVW (kg): 11995
Battery capacity (kWh): CATL 140.95
Operation capacity (h): 6-7
Category
Special VehicleShare to
Electric compressed garbage truck is a special vehicle used for collecting, transporting and unloading bagged, drummed and bulk domestic garbage in towns and cities.
Parameter
Size (mm) | Long × Width × High | 7760×2430×2740 |
|
| |
Front overhang/Rear overhang/Wheelbase/Reach | 1230/2340/3800/390 |
|
| ||
Front track/Rear track | 1770/1800 |
|
| ||
Minimum ground clearance | 215 |
|
| ||
Mass (kg) | Total mass/Curb Weight/Load capacity | 12495/7600/4700 |
|
| |
Passability | Approach Angle/Departure Angle (°) | 12/20 |
|
| |
Minimum turning diameter (m) | 14.5 |
|
| ||
Dynamics | Maximum speed (km/h) | 90 |
|
| |
Maximum climbing grade (%) | 20 |
|
| ||
Chassis | Manufacturer | DFAC |
|
| |
Cab | Type/Number of passengers allowed | Capt T7L reversible/2 |
|
| |
Tire | Specification/Quantity | 245/70R19.5 16PR/7 |
|
| |
Drive motor | Model | TZ342XSSFY02 |
|
| |
Type | Permanent magnet synchronous motor |
|
| ||
Manufacturer | Fast |
|
| ||
Rated power/Peak power (kW) | 110/180 |
|
| ||
Power battery | Production Company | CATL |
|
| |
Power | 140.95 kWh |
|
| ||
Gearbox | Production Company | Shanxi Fast Gear Co., Ltd. |
|
| |
Model | Automatic |
|
| ||
Rear axle | Dongfeng Dana Axle Co., Ltd. 11.5T |
|
| ||
Steering system | Steering gear Type | Recirculating ball steering wheel |
|
| |
Power type | Hydraulic |
|
| ||
Braking system | Type | Air pressure dual circuit, front and rear drum type, with ABS |
|
| |
Air conditioner | Type | Standard hot and cold air conditioning |
|
| |
Special device | Filler | Material | Q355B |
|
|
Effective volume (m³) | 1.5 |
|
| ||
Compression method | Bidirectional compression |
|
| ||
Wastewater tank | Material | Q355B |
|
| |
Volume (L) | 460L+230L |
|
| ||
Trash Bin | Material | Q345B |
|
| |
Effective volume (m³) | 8 |
|
| ||
Hydraulic system | System working pressure (MPa) | 16 |
|
| |
System flow (L/min) | 40+16 |
|
| ||
Dedicated Features | Loading operation cycle time | ≤10S |
|
| |
Scraper slide one cycle time | ≤22S |
|
| ||
Unloading cycle time | ≤50S |
|
| ||
Filler opening angle | 90° |
|
| ||
Other | Equipment | Cab and rear vehicle separate control, emergency stop buttons on both sides, anti-slip button, tool kit, warning triangle, jack, fire extinguisher, reflective vest, 2 parking wedges |
|
| |
Optional | Features | Reversing image, reversing radar, 360° panoramic imagery |
|
| |
Feature

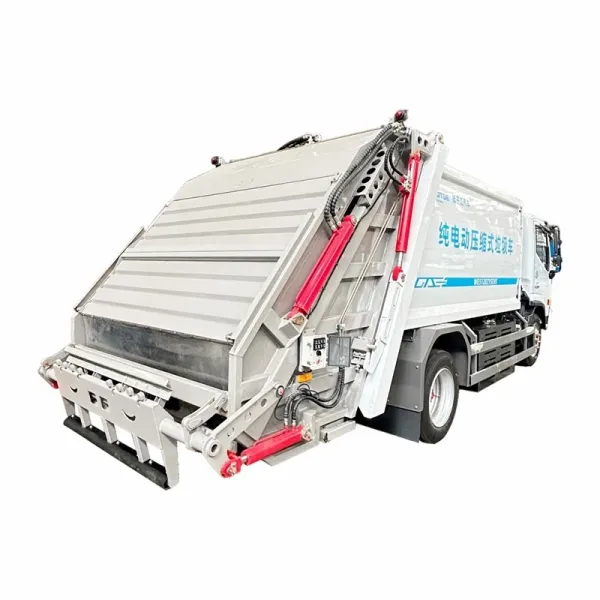

The whole vehicle is fully sealed, compressed and dumped by itself, and all the sewage in the compression process goes into the sewage tank. The functions of its special devices are realized manually or electronically by hydraulic mechanism. The box, filler and sewage tank of the vehicle are all made of high-quality carbon steel plate with fully sealed welded structure, which has the advantages of high strength, light weight and no secondary pollution.
Detail
1. The patented foldable cover design is aesthetically pleasing and has a good sealing effect. Adopting advanced two-way compression technology with strong compression capacity, which is the leading position in the industry.
2. Key components such as hydraulic cylinders, hydraulic valves, push shovel back pressure valves, balancing valves, etc. are all of well-known brands in the industry.

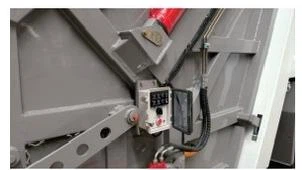

3. Equipped with a center control panel and a tailgate operating panel, the center control panel in the cab controls the shovel unloading and selects the operating mode, and monitors the status of proximity switches and sensor signals.
