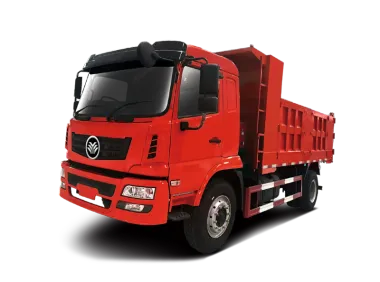

20T Diesel Dump Truck/ChassisDrive Mode: 4*2View More
Payload Capacity (kg): 20000
Overall Vehicle Dimensions (mm): 7400×2500×3200

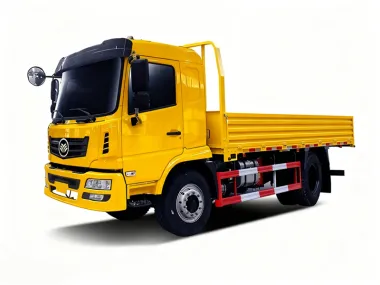

18T RHD Diesel Truck/ChassisDrive Mode: 4*2View More
Payload Capacity (kg): 18000
Overall Vehicle Dimensions (mm): 8300×2500×3200

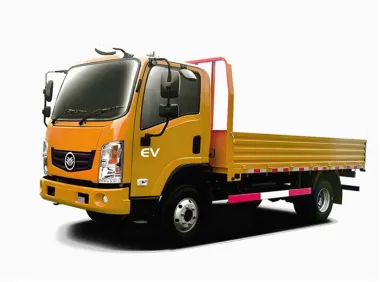

RHD 7T Electric TruckDrive Mode: 4*2 Electric Drive AxleView More
Load Capacity (kg): 4500
Chassis Weight (kg): 2530

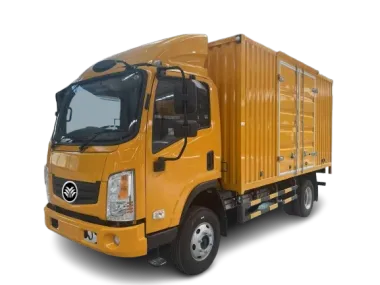

RHD 5T Electric Cargo TruckDrive Mode: 4*2 Electric Drive AxleView More
Load Capacity (kg): 3000
Chassis Dimensions (mm): 5800×2100×2400

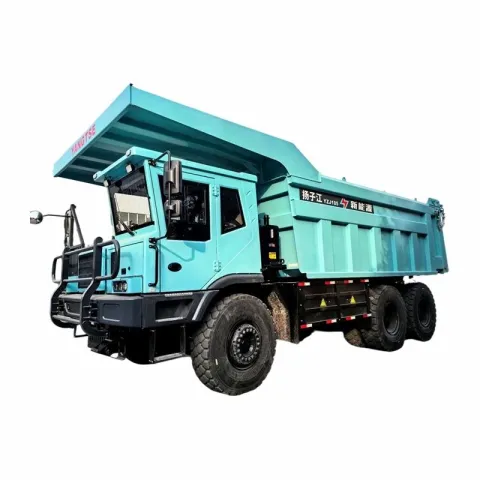

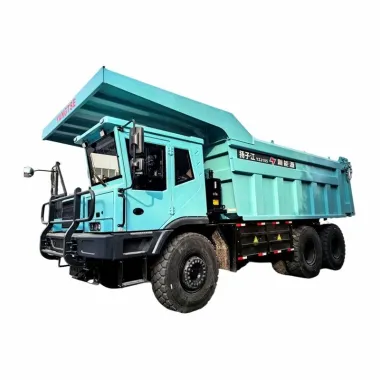

Electric Off-highway Mining Dump Truck 105TOverall vehicle size (mm): 9960×3750×4200View More
Cargo box bucket capacity (m³): 40
Maximum gross mass (t): 105

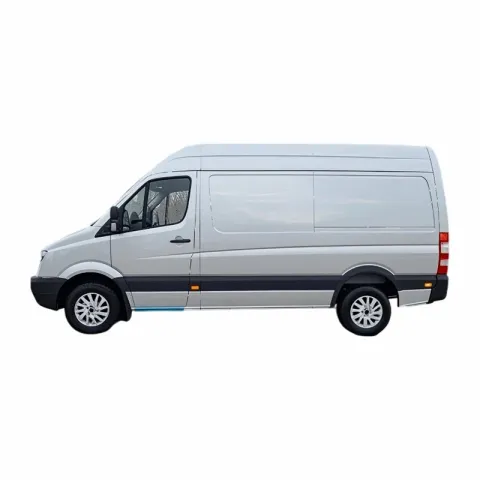

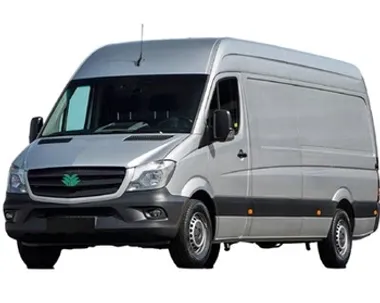

Electric Refrigerated VANOverall vehicle size (mm): 5960×2020×2650View More
Wheelbase (mm): 3665
Curb weight (kg): 2580

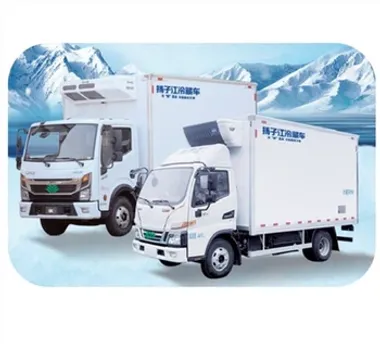

Hybrid Refrigerated TruckOverall vehicle size (mm): 5995×2250×3100View More
Cargo box size (mm): 4200×2100×2000
Drive type: 4x2
Why choose us
Certificate
The company holds national qualifications for the production of new energy vehicles and has passed both 3C certification and TS16949 quality system authentication. It has fully independent R&D capabilities in pure electric vehicles, including batteries, motors, and electric control systems. Yangtse Automotive Group Co., Ltd. has also won the Gold Medal at the CIBC China International Bus Competition for six consecutive years.
Market
Our products have been exported to Thailand, Myanmar, Bangladesh, Malaysia, Russia, Bolivia, Peru, and other countries. In the context of the "One Belt, One Road" initiative, our overseas market share has continued to grow year by year.
We Offer Multi-Scenario Solutions
Our all-in-one photovoltaic charging solutions are customized to meet the needs of various usage scenarios. No matter the circumstance, we always deliver the ideal solution for you.
Service
Yangtse Automotive Group Co., Ltd. has a complete and effective quality assurance system and process. Strict control procedures are in place at every stage — from planning, design, and production preparation to incoming parts inspection, manufacturing, final inspection, and after-sales service. These processes ensure that no defective products are designed, accepted, produced, or delivered, and that any quality issues are promptly identified and corrected.

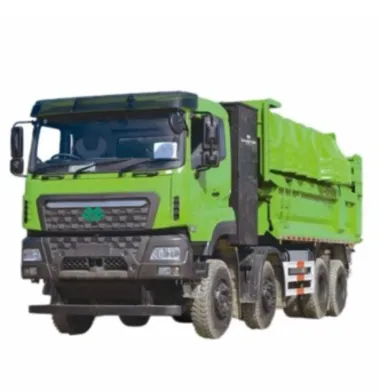

Electric Dump Truck 8X4
8x4 Highway Dump Truck uses a high-quality engine with good power, high economy, and cost savings compared to similar products. Our product adopts noise reduction technology, which has good sealing performance and comfortable driving. It can travel for a long distance, can well meet the transportation needs, and is one of the best choices for the transportation industry.
Parameter
Technical Parameters | ||||
Serial number | Item Head | Parameter | Note | |
1 | Size | Length × width × height (mm) | 11650× 2550 ×3640 | |
Front overhang / rear overhang (mm) | 1550 / 2200 | |||
Wheelbase (mm) | 1950+4600+1350 | |||
Front track / Rear track (mm) | 2060/1860 | |||
2 | Mass | GVW (kg) | 31000 | |
Curb weight (kg) | 21000 | |||
3 | Power | Maximum speed (km/h) | 85 | |
Maximum climbing grade (%) | 35 | Peak | ||
4 | Wheel | Tire specifications | 12.00R20 | With inner tube |
Rim material | Steel | |||
Quantity | 10 | |||
5 | Drive motor | Brand | Top3 | |
Power - Rated / Peak (kW) | 315/510 | |||
Torque - Rated / Peak (Nm) | 1650/3100 | |||
6 | Gearbox | Type | AMT four-speed | |
7 | Power battery | Type | Lithium Iron Phosphate | |
Total power (kWh) | 282 | |||
8 | Electronic Control | Type | Five in One (MCU+PDU+oil pump DCAC air pump DCAC+DCDC) | |
9 | Front and rear axles | Front axle tonnage/type | 9.5T drum | |
Center and rear axle tonnage/type | 2×16T double-stage drum | |||
10 | Shelf | Type | Equal height and width straight beam reinforced type | |
Main longitudinal beam section (mm) | 300 × 80 | |||
Frame assembly width (mm) | 860 | |||
11 | Chassis | Suspension | Multi-leaf spring, integral balance shaft, rear leaf spring four-horse fixed | |
Steering | Integral hydraulic power steering | |||
Brake | Dual circuit with ABS air brake | |||
12 | Tops | Inner length × Inner width × Inner height (mm) | 7800×2350×1500 | |
Height inside the car (mm) | 1500 | |||
13 | Cab | Type | LHD, Flat roof, One bedroom | |
Number of drivers | 2 | |||
Configuration | ||||
Basic Configuration | 1. Vehicle thermal management system (motor electronic control cooling + cab air conditioning and heating + power battery water cooling and heating three-in-one solution) | |||
2. Braking energy recovery function | ||||
3. Driving recorder; multi-function steering wheel | ||||
4. Digital instrument (not full LCD) | ||||
5. Vehicle limp home function; creep function; remote vehicle lock function | ||||
Optional configuration | Project | Standard | Optional | |
Power take-off | Y | / | ||
Power take-off form | Spline | Flange | ||
Cab suspension | Fully floating airbag | Semi-floating coil spring | ||
Driver's Seat | Airbag Seat | Mechanical Seat | ||
Multimedia | Radio | Central control LCD screen | ||
Reversing monitor | None | Y | ||
ASR | None | Y | ||
Disc brake | None | Y | ||
Electric parking | None | Y | ||
AEBS | None | Y | ||
Product details
- It adopts needle roller bearings, which makes the steering more stable and the operation more comfortable.
- Our 8x4 Highway Dump Truck uses high-quality engines, high torque, low emissions, strong power and good economy.
- High-quality bridge reduction, strong carrying capacity and high reliability.
- Surrounding instrument, beautiful and comfortable, good safety and sealing, flexible and convenient operation.
- The air filtration efficiency is high, which effectively protects the engine.
- The entire product has undergone enhanced design and passed authoritative crash tests, greatly improving safety performance.
- High-quality gearbox, multiple gears, easy to select and shift gears.
Life-cycle Optimal Control(LOC)
Real-time prediction of power battery life
Optimization of energy distribution and drive control strategy
Ensure high-efficiency operation of the vehicle with the power battery performance gradual decreases during the life cycle
Comprehensive Thermal Management(CMT)
Adopting King Long Patented technology of thermal management. Comprehensive control and Multi-objective arrangement for thermal management of power battery, motor, and high-voltage controller. Ensure all systems to operate within optimum temperature range. Improve energy utilization efficiency, reduce power consumption with intelligent control algorithm (around 5% energy saving).
Dynamic Calibration of Electric Accessory Consumption(DCEAC)
Real-time dynamic calibration for energy consumption of the electrical accessories More accurate energy distribution Ensure power output more aligned with driving intention Further improve control reliability and energy consumption (around 2% energy saving)
Intelligent Driving Guidance System
Driver Monitor System(DMS)
Real-time monitoring of driver's facial emotion, posture and driving behavior,
Timely warning and alert if abnormal detected and report to the cloud/remote system.
Product feature and application
Comfortable Cab
The wide and heightened cab provides comfortable driving and better visibility.
01
Lightweight Design
Lightweight configuration of the whole vehicle, with lighter overall weight.
02
Strong Axle
Strengthen the 435 press-welded bridge, which has a higher carrying capacity than competing similar axles and high reliability.
03
Air Filter
Equipped with two-stage air filter to ensure the quality of intake air.
04
Fuel Efficient
The overall speed ratio meets the needs of national highway transportation, and the fuel saving effect is the best.
05
FAQ
Q: How about the warranty?
A: 1 year.
Q: Do you have ISO certificate?
A: Yes, we have, please contact us to get our certificates.
Q: How about the delivery time?
A: Most of our trucks have stock, we can deliver to you within 7 days, if specially ordered, normally we need around 30 days for production.
Q: How many units of truck does your factory produce per year?
A: Almost 100000 units. Nearly 8500 units per month.
Q: How do you control the quality of product?
A: Our Factory has standard production workshop, gets ISO CCC BV certificates, our workers are well trained. Every unit of product undergoes a rigorous inspection process.
Q: How about your product after-sales service system?
A: Our main export countries have accepted after-sales service, some countries use the third party service.
Q: Do you accept custom order? What's is your MOQ order?
A: Yes, we do, our MOQ is 1 unit.
Q: What's the payment terms?
A: By T/T or L/C at sight.
