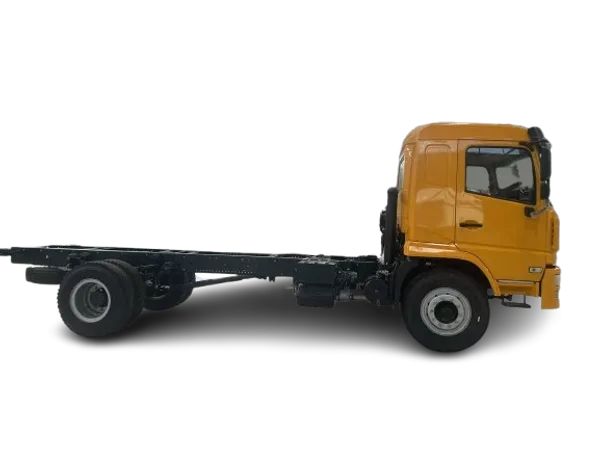

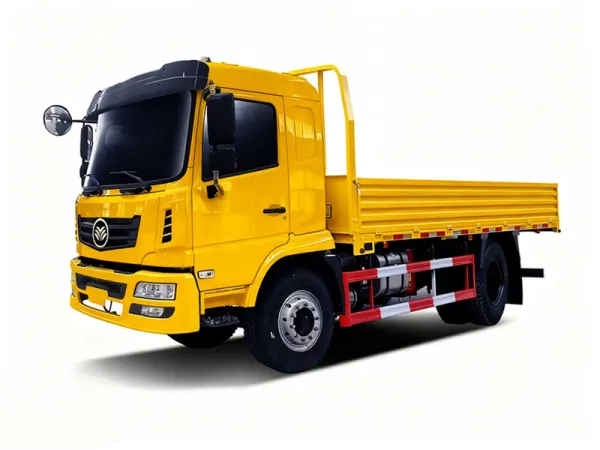

18T RHD Diesel Truck/Chassis

Details

Product Name: 18T RHD Diesel Truck/Chassis
Drive Mode: 4*2
Payload Capacity (kg): 18000
Chassis Weight (kg): 5150
Overall Vehicle Dimensions (mm): 8300×2500×3200
Loading Compartment Dimensions (mm): 5600×2300×800
Wheelbase (mm): 4700
Maximum Speed (km/h): 89
Maximum Gradeability (%): 25

Category

Truck

Share to

Send Inquiry

The 18T RHD Diesel Cargo Truck is a robust and reliable workhorse engineered for heavy-duty transportation and demanding logistics operations. Built around a powerful Cummins engine and a durable Fast gearbox, it delivers exceptional torque, superior gradeability, and a massive 18-ton payload capacity. Furthermore, we offer extensive, custom-built solutions, tailoring the chassis and body to your specific operational needs, ensuring the perfect vehicle for your unique challenges.

Parameter

Products Parameters

Cab - Width (mm)2250
Cab - TypeFlat Roof, Semi-Split Type, Right-Hand Drive
Cab - Seating Capacity3 Seats
Cab - Air ConditioningRefrigerating AC
Engine - BrandCummins
Engine - ModelB170 33
Engine - Power (kW)125
Engine - Torque (N.m)560
Transmission - BrandFast
Transmission - Model8JS85F-C
Transmission - Gears8+2
Other - Tire10.00R20 18PR
Other - BrakeAir Brake, Drum Type
Other - Fuel Tank Capacity (L)280

Products Features

1. Superior Power & Performance

Features a Cummins B170 33 engine delivering 125 kW power and a formidable 560 N·m torque, ensuring strong pulling power and reliability under the heaviest loads.Equipped with a Fast 8JS85F-C manual transmission (8-forward, 2-reverse gears), providing smooth shifting, precise control, and excellent durability.

Outstanding Gradeability: A 25% maximum gradeability allows it to easily handle steep inclines and tough terrain.

2. High-Capacity & Customizable Platform

With an impressive 18,000 kg payload capacity, it is designed to carry significant loads, boosting operational efficiency.We specialize in custom vehicle development. Whether you require a tipper, mixer, refuse truck, or a specialized cargo body, we can engineer and configure the vehicle to your exact specifications.

3. Professional Reliability & Safety

Dependable Air Brakes: The professional Air Brake system provides strong, reliable stopping power, critical for safety under full-load conditions.

Large Fuel Tank: A 280-liter fuel tank extends operational range and reduces refueling stops.

Why This Product

Powerful & Reliable: Trusted Cummins engine and Fast transmission combo.

Built for Heavy Loads: Exceptional 18-ton payload and high-strength construction.

Tailored to You: Full custom-built options available to meet your exact business requirements.

Market Ready: Compliant RHD design for specific international markets.

Professional Safety: Critical air brake system for confident stopping.

Products Details

Right-hand Drive Design

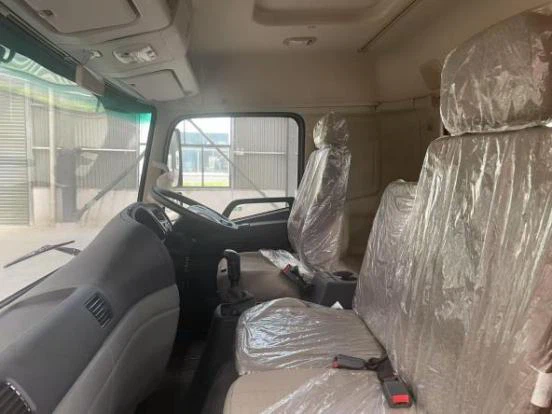

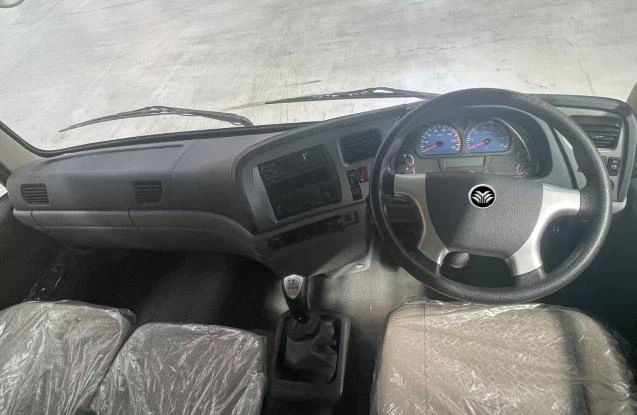

Right-hand Drive Design 1 Right-hand Drive Design 2

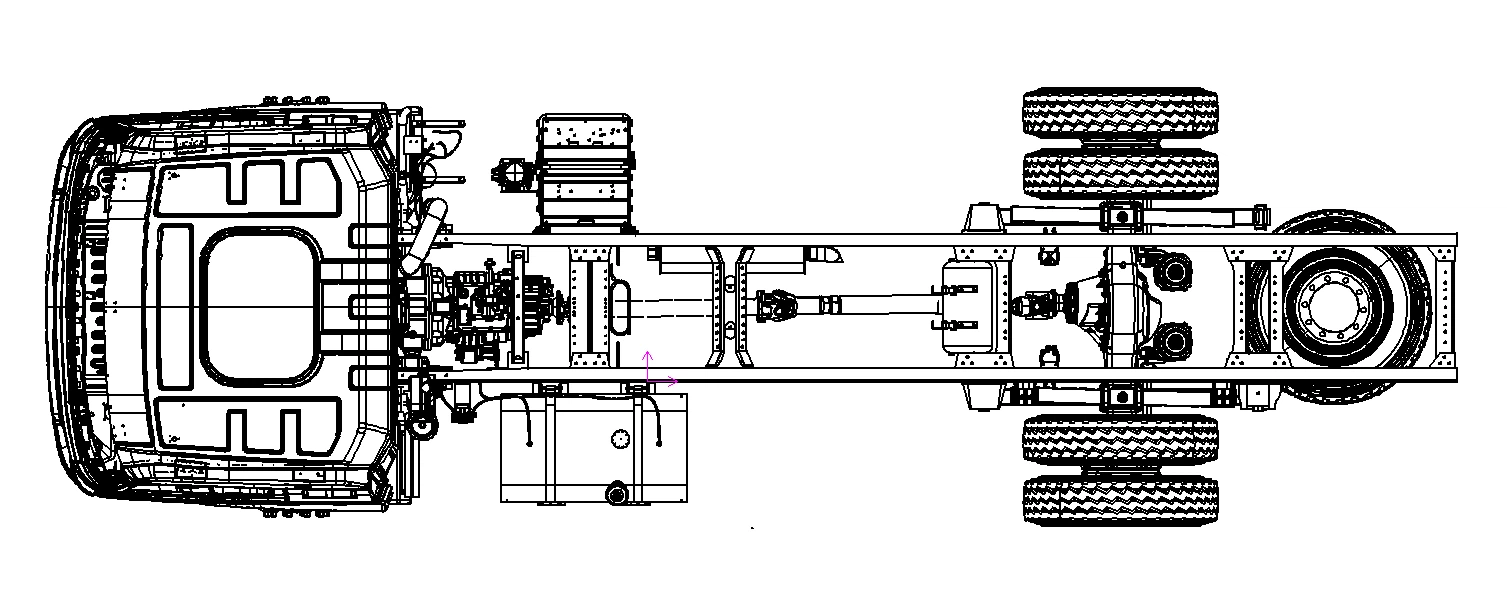

Versatile Chassis Design

Versatile Chassis Design

Cummins Engine + FAST Gearbox

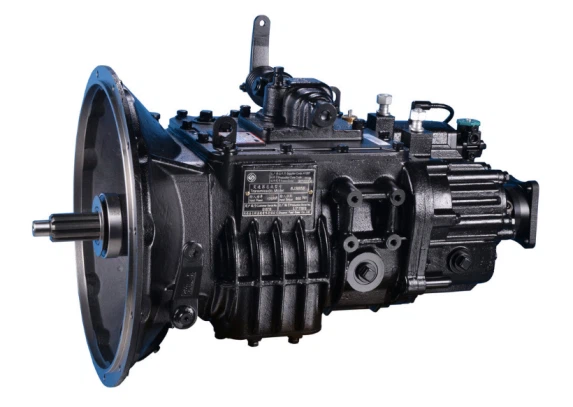

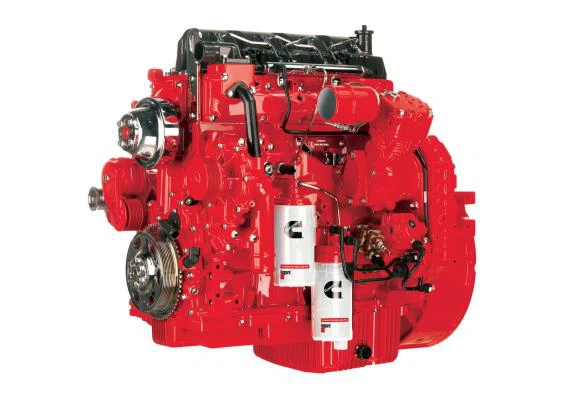

Cummins Engine FAST Gearbox

Products Parameters

Cab - Width (mm)2250
Cab - TypeFlat Roof, Semi-Split Type, Right-Hand Drive
Cab - Seating Capacity3 Seats
Cab - Air ConditioningRefrigerating AC
Engine - BrandCummins
Engine - ModelB170 33
Engine - Power (kW)125
Engine - Torque (N.m)560
Transmission - BrandFast
Transmission - Model8JS85F-C
Transmission - Gears8+2
Other - Tire10.00R20 18PR
Other - BrakeAir Brake, Drum Type
Other - Fuel Tank Capacity (L)280
