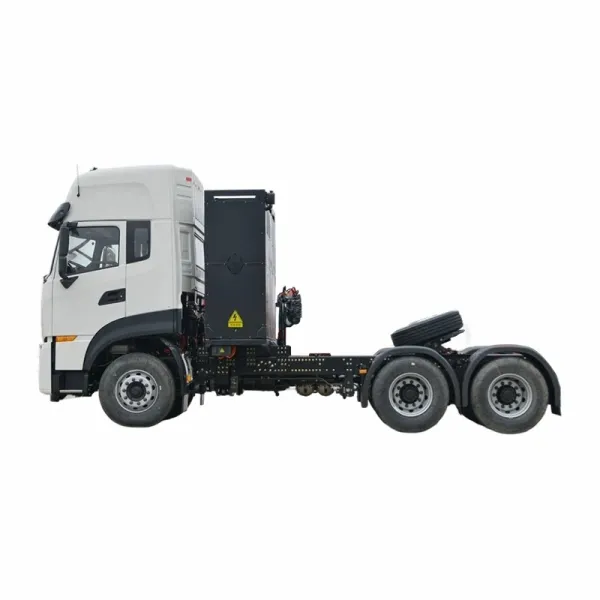

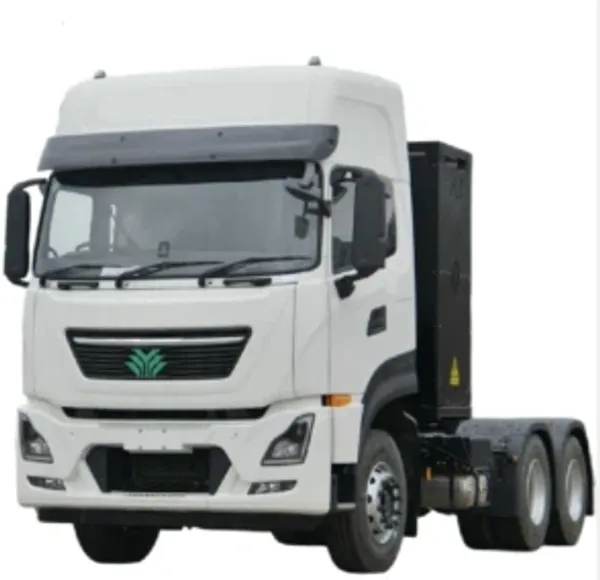

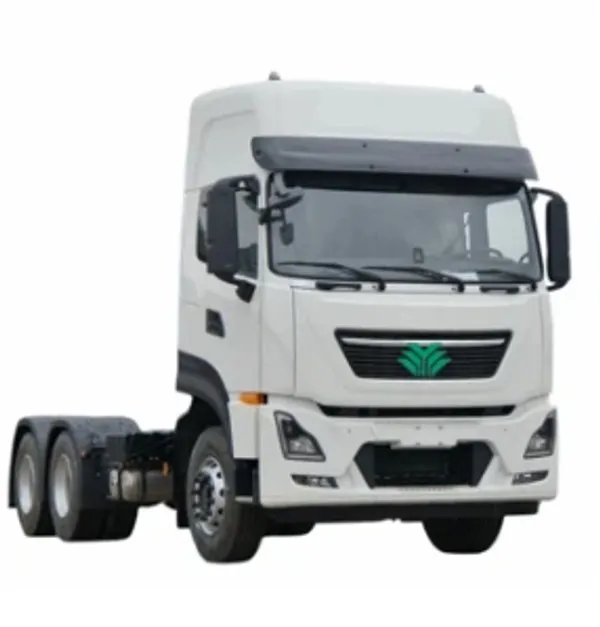

Electric Tractor 6X4

Details

Drive type: 6×4
Bearing level: Standard load
Body Type: Widebody
Power replenishment method: Charge

Share to

Send Inquiry

The 6×4 Electric Tractor represents a transformative leap in freight transportation, combining zero-emission technology with uncompromising performance. Designed for long-haul and heavy-duty applications, it delivers exceptional efficiency, lower operating costs, and sustainable operation without sacrificing power or reliability.

Parameter

Technical Parameters

Size - Length × width × height (mm)	7500×2550×3200
Size - Front overhang / rear overhang (mm)	1540/810
Size - Wheelbase (mm)	3800+1350
Size - Front track / Rear track (mm)	2060/1860
Mass - Total mass (kg)	25000
Mass - Curb weight (kg)	11000
Dynamics - Maximum speed (km/h)	89
Dynamics - Maximum climbing grade (%)	>25
Wheel - Tire specifications	295/80R22.5
Wheel - Rim material	Steel
Wheel - Quantity	10
Drive motor - Brand	Yangtze River
Drive motor - Power - Rated/Peak (kW)	280/420
Drive motor - Torque - Rated/Peak (Nm)	1500/2600
Gearbox - Type	AMT four-speed
Power battery - Type/Brand	Lithium iron phosphate / CATL
Power battery - Total power (kWh)	400.16
Electronic Control - Type	Five in One (MCU+PDU+oil pump DCAC air pump DCAC+DCDC)
Axles - Front axle tonnage/type	7.5T drum
Axles - Center and rear axle tonnage/type	2×11.5T single-stage drum
Frame - Type	Equal height and width straight beam
Frame - Main longitudinal beam section (mm)	300×90×8
Frame - Frame assembly width (mm)	860
Chassis - Suspension	Less leaf spring, split balance shaft
Chassis - Steering	Integral hydraulic power steering
Chassis - Brake	Dual circuit with ABS air brake, ESC
Saddle	50#
Cab - Type	LHD, Flat roof, One bedroom
Cab - Number of drivers	2

Basic Configuration

1	Vehicle thermal management system (motor electronic control cooling + cab air conditioning and heating + power battery water cooling and heating three-in-one solution)
2	Braking energy recovery function
3	Driving recorder; multi-function steering wheel
4	Digital instrument (not full LCD)
5	Vehicle limp home function; creep function; remote vehicle lock function

Optional Configuration

Power take-off	Standard: Y / Optional: None
Power take-off form	Standard: Spline / Optional: Flange
Cab suspension	Standard: Fully floating airbag / Optional: Fully floating coil spring
Driver's Seat	Standard: Airbag Seat / Optional: Mechanical Seat
Multimedia	Standard: Radio / Optional: Central control LCD screen
Reversing monitor	Standard: None / Optional: Y
Static mop belt	Standard: Y
Spare tire	Standard: None / Optional: Y
Charging method	Standard: Double Gun

Feature

The 6×4 Electric Tractor sets a new standard for sustainable freight transport, offering comparable performance to diesel with significantly lower lifetime costs. With rapid charging capability and smart connectivity features, it's the future-proof choice for fleet operators transitioning to green logistics.

Applications

Long-Haul Trucking: Eco-friendly alternative for freight corridors

Port Operations: Ideal for container transport with instant torque

Heavy Equipment Transport: Capable of handling oversized loads

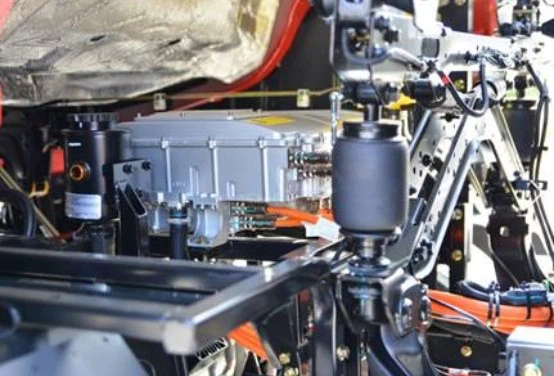

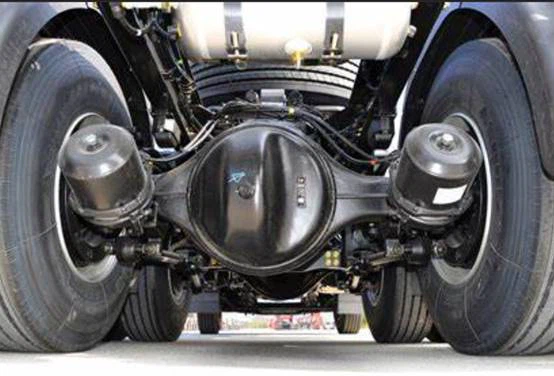

Detail

Economic & Operational Advantages

60% Lower Energy Costs vs. diesel counterparts

Reduced Maintenance: Fewer moving parts and no exhaust aftertreatment

Noise Reduction: Quieter operation enables night deliveries in urban areas

Robust Tractor Design

6×4 Configuration: Optimal weight distribution for heavy payloads

Aerodynamic Cab: Reduces drag to maximize range

High-Strength Frame: Designed for million-kilometer service life
