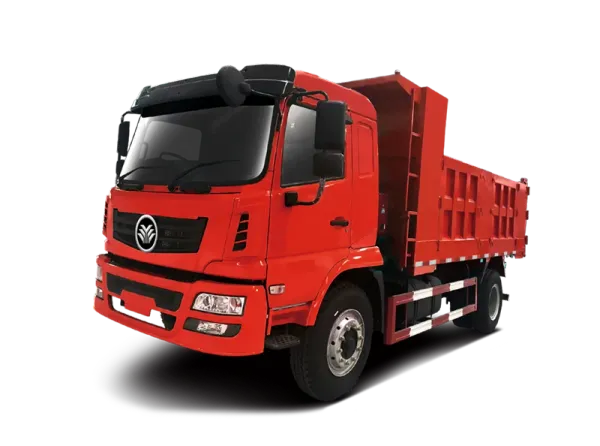

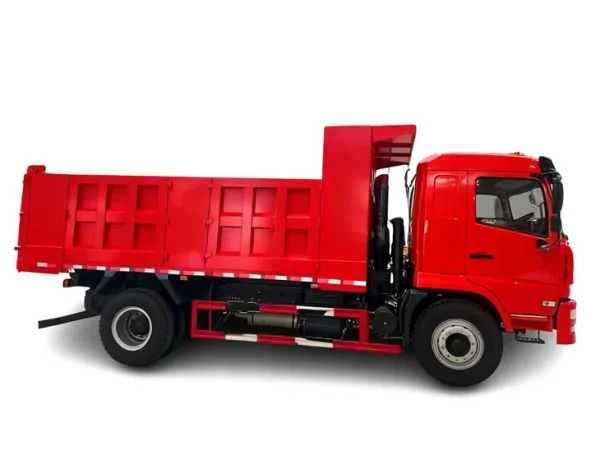

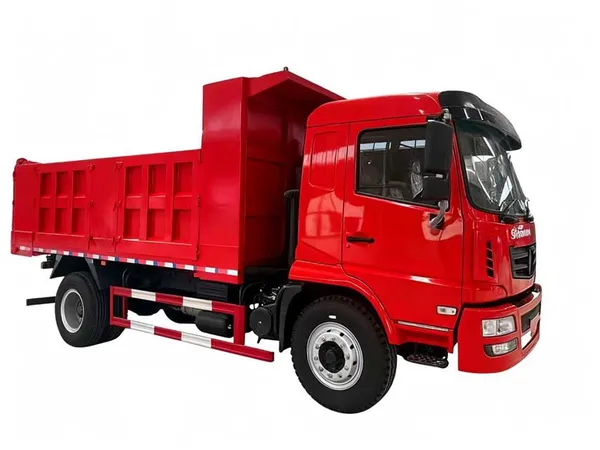

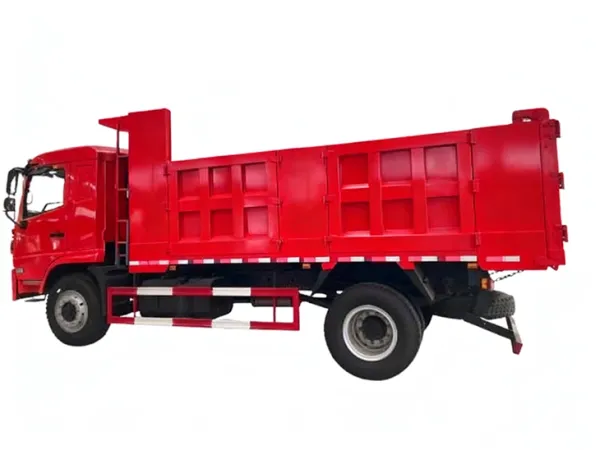

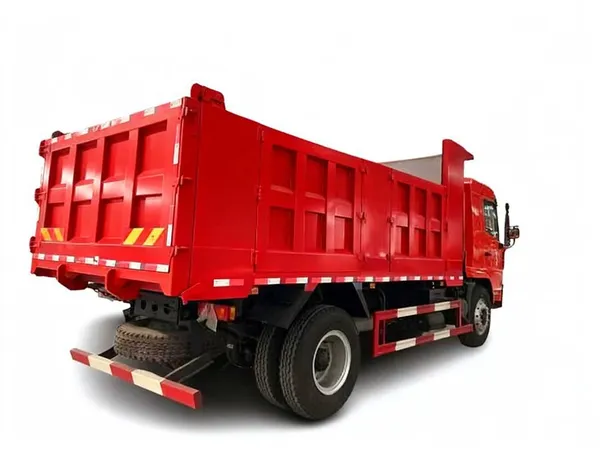

20T Diesel Dump Truck/Chassis

Details

Product Name: 20T Diesel Dump Truck/Chassis
Drive Mode: 4*2
Payload Capacity (kg): 20000
Curb Weight (kg): 8840
Overall Vehicle Dimensions (mm): 7400×2500×3200
Loading Compartment Dimensions (mm): 4800×2300×1200
Wheelbase (mm): 4250
Maximum Speed (km/h): 89
Maximum Gradeability (%): 25

Category

Truck

Share to

Send Inquiry

The 20T Diesel Dump Truck is a powerful, customizable, and operator-friendly solution designed to boost efficiency and reliability in the most challenging industrial environments. Built on a versatile chassis, it combines a powerful Cummins engine with a high-torque FAST transmission to deliver exceptional performance and durability under demanding conditions. It's ideal for construction sites, mining and quarrying, infrastructure projects, agriculture, and farming etc. We specialize in customizing this vehicle to meet your specific project requirements. From varying body dimensions and material types to specialized add-ons, we can tailor the dump truck to perfectly fit your operational needs and terrain challenges.

Parameter

Products Parameters

Cab - Width (mm)2250
Cab - TypeFlat Roof, Extended Cab, Right-Hand Drive, 3 Seats
Cab - Air ConditioningRefrigerating AC
Engine - BrandCummins
Engine - ModelB190 33
Engine - Power (kW)140
Engine - Torque (N.m)640
Transmission - BrandFAST
Transmission - Model10JS90A-B+QD40E
Transmission - Gear10+2
Other - Tire10.00R20 18PR
Other - BrakeAir Brake, Drum Type
Other - Fuel Tank Capacity (L)280

Products Features

1.High Load Capacity: A substantial 20,000 kg payload ensures maximum productivity per trip.

Proven Powertrain: Features a Cummins B190 33 engine (140 kW) delivering high torque (640 N.m) for excellent pulling power and gradeability (25%), paired with a reliable FAST 10-speed manual transmission for smooth operation.

2.Durable & Stable Chassis: A 4250mm wheelbase and a heavy-duty frame provide superior stability and longevity, even on rough terrains.

Operator Comfort: The spacious, right-hand drive cab is equipped with air conditioning and seating for three, reducing operator fatigue and enhancing productivity.

3.Enhanced Safety: Equipped with a dependable air brake system (drum type) for secure stopping power under full load.

4.Practical Design: A large 280L fuel tank minimizes refueling downtime, and the 10.00R20 18PR tires offer robust traction and load-bearing capacity.

5.Flexible Approach.we offer comprehensive Knock-Down (KD) kits for overseas partners. This flexible approach allows for efficient shipping and local assembly, reducing overall costs, minimizing import tariffs, and supporting local value addition while maintaining our high standards of quality and performance.

Products Details

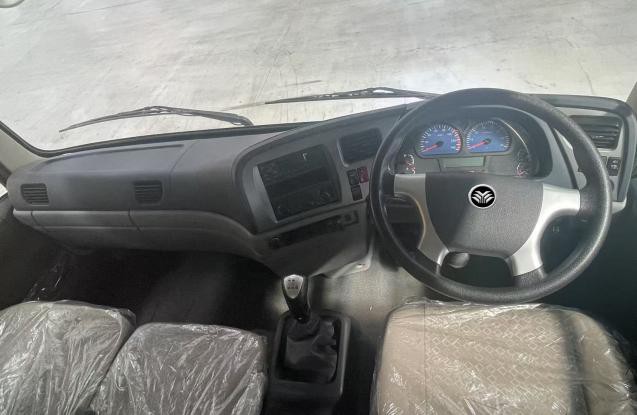

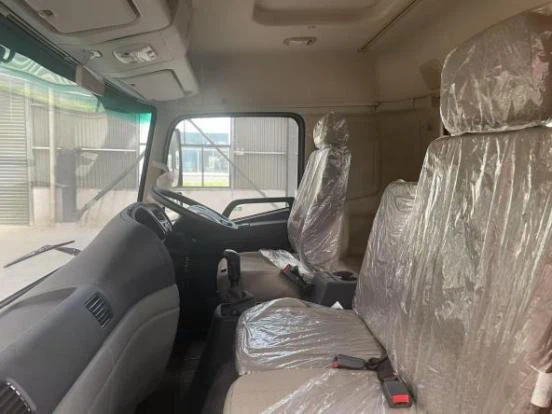

Right-hand Drive Design

Right-hand Drive Design 1 Right-hand Drive Design 2

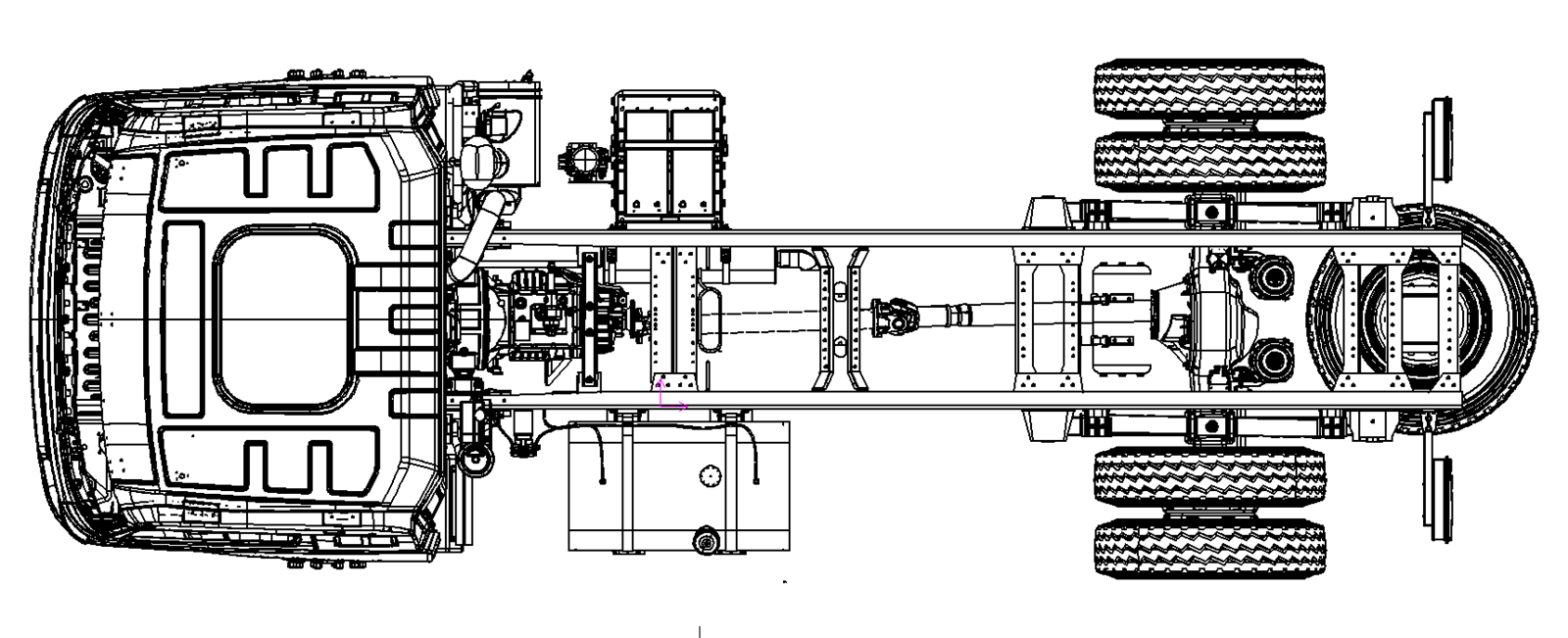

Versatile Chassis Design

Versatile Chassis Design

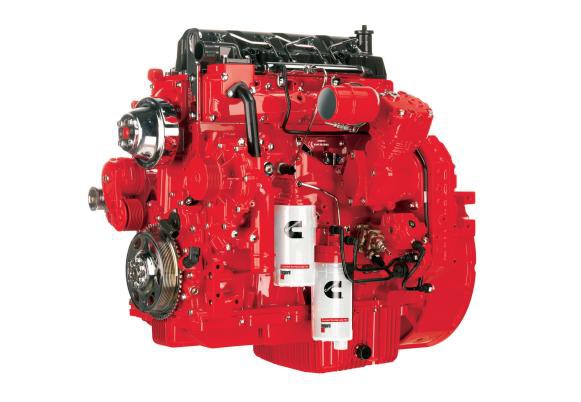

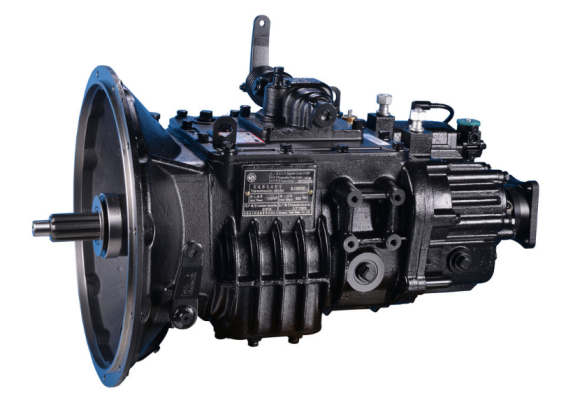

Cummins Engine + FAST Gearbox

Cummins Engine FAST Gearbox

Products Parameters

Cab - Width (mm)2250
Cab - TypeFlat Roof, Extended Cab, Right-Hand Drive, 3 Seats
Cab - Air ConditioningRefrigerating AC
Engine - BrandCummins
Engine - ModelB190 33
Engine - Power (kW)140
Engine - Torque (N.m)640
Transmission - BrandFAST
Transmission - Model10JS90A-B+QD40E
Transmission - Gear10+2
Other - Tire10.00R20 18PR
Other - BrakeAir Brake, Drum Type
Other - Fuel Tank Capacity (L)280
