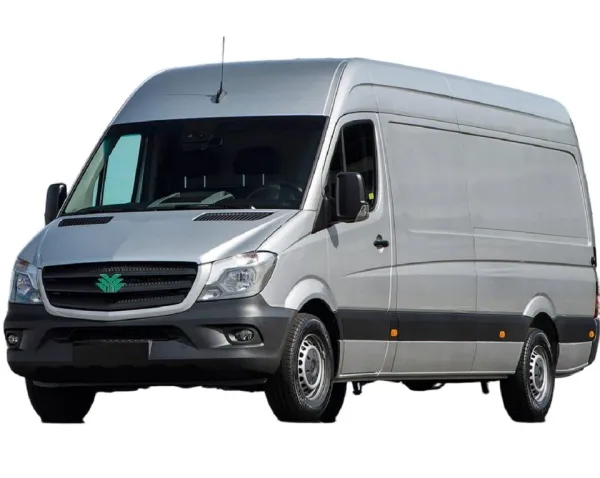

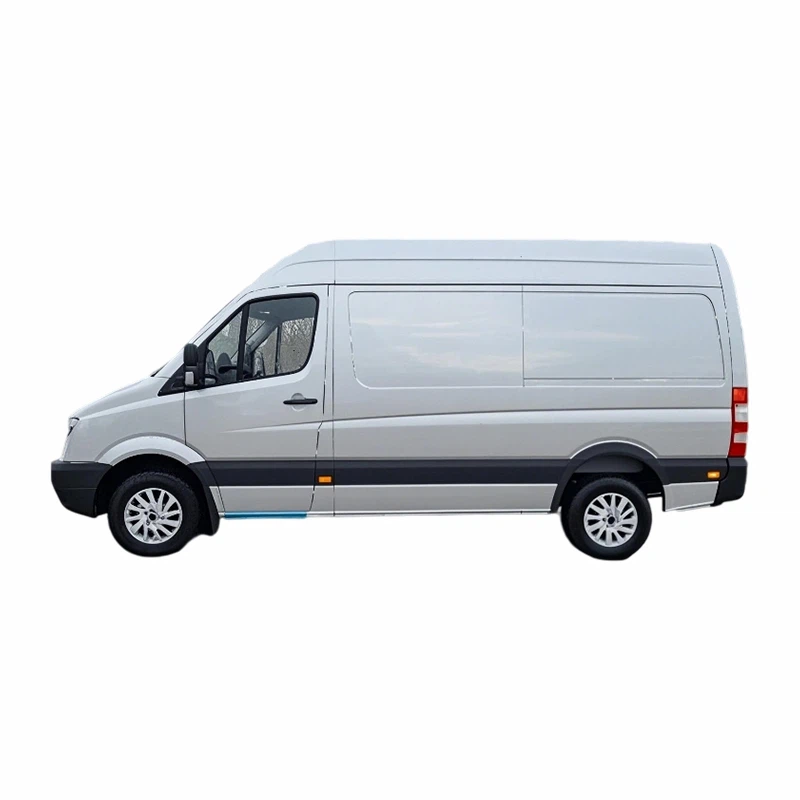

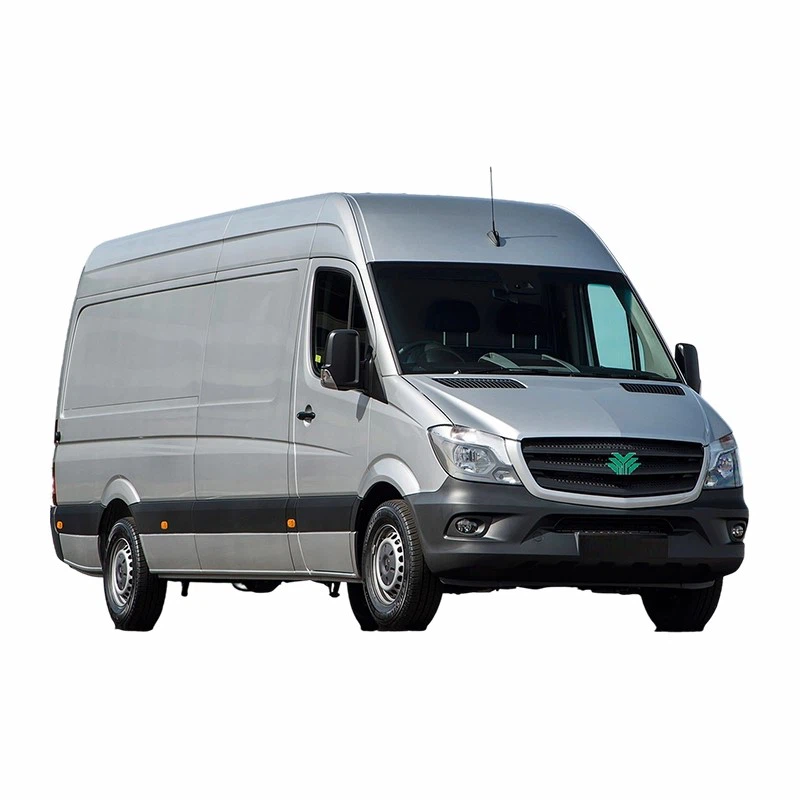

Electric Refrigerated VAN

1) Dimensions and Structure
Available in two height options: High roof (overall dimensions 5960X2020X2650 mm) and flat roof (2360 mm height). Wheelbase is 3665 mm.

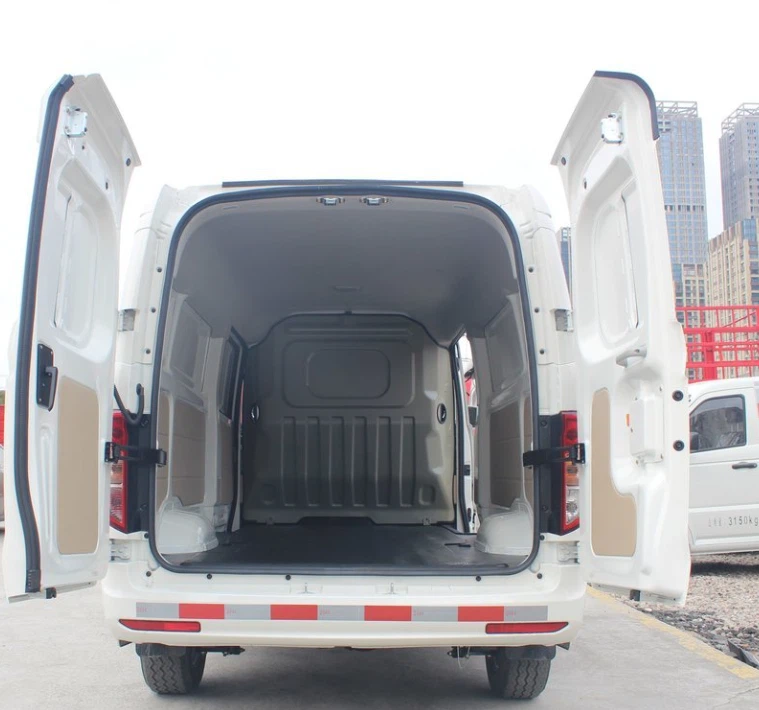

Has 4 doors and 2/3 seats, with 270-degree parallel rear tailgate.

2) Weight
Curb mass is 2580 kg, with a total mass of 4490 kg.

3) Performance
Maximum speed of 100 km/h and can climb a gradient of up to 20%.
Equipped with a CATL 77 kwh power battery, offering an equivalent speed range of 340 km.
Drive motor has a peak power of 120 kw and torque of 350 N.M.

4) Suspension and Steering
Front: Transverse spring front independent suspension.
Rear: Longitudinally mounted 3-leaf spring suspension.
Steering with EPS electro-hydraulic power assist.

5) Wheels and Tires
Wheel specification: 215/75 R16LT.
Comes with 6 steel wheels (aluminum wheels optional).

1. Zero-Emission Efficiency
This fully electric van delivers sustainable urban logistics with zero tailpipe emissions, aligning with green transportation initiatives while maintaining robust cargo capacity.

Advanced Electric Performance
Powered by a high-capacity battery system, it offers extended range on a single charge, rapid charging capabilities, and smooth, quiet operation ideal for city deliveries.

2. Smart Control System
The control mode "Display + Controller + CAN bus operator panel" is used for several reasons. The center control panel can monitor the sensor signal status, display the fault codes, and electric parameters of the motor.

3. Durable Construction
The tank adopts electrophoresis and powder spraying technology, with good corrosion protection effect. Tank body adopts rolled plate edging process, automatic welding, good tank molding effect.
