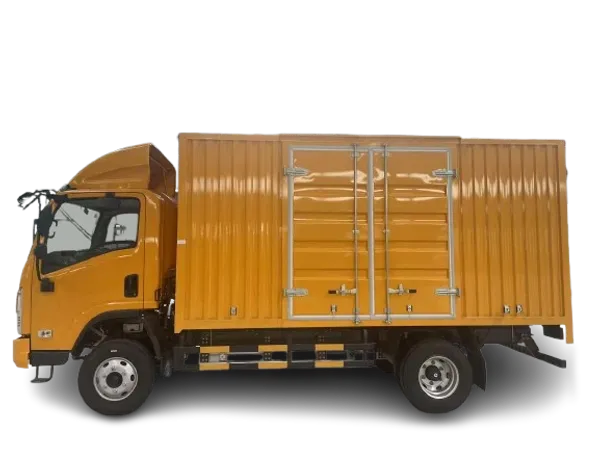

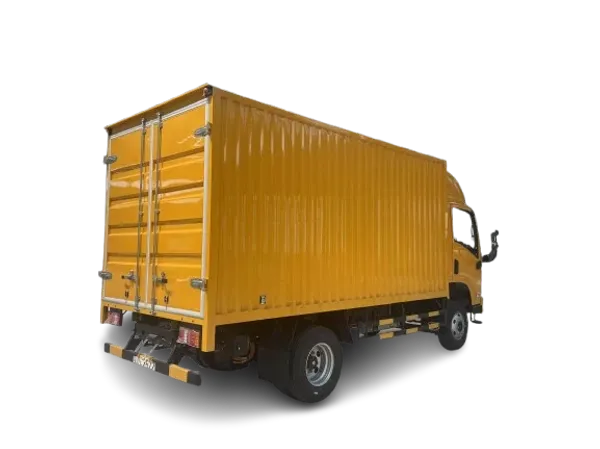

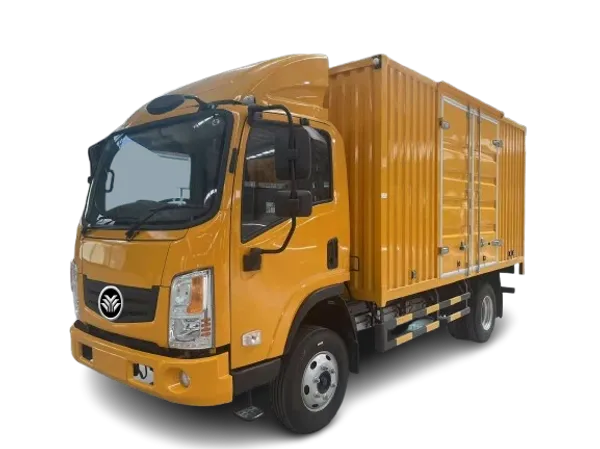

The 5T Pure Electric Truck/Chassis is designed for global markets, featuring a right-hand drive configuration to meet overseas requirements. Its versatile chassis supports a wide range of modifications, including cargo, mesh van, refrigerated, and garbage truck applications.
| Product Name | RHD 5T Pure Electric Truck/Chassis |

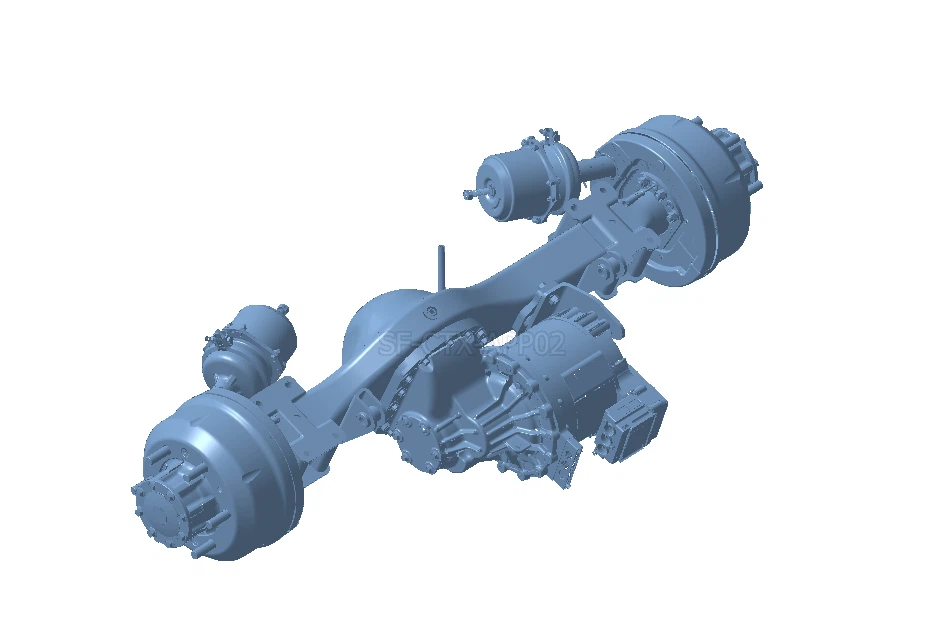

| Basic Parameters - Drive Mode | 4*2 Electric Drive Axle |
| Basic Parameters - Load Capacity (kg) | 3000 |
| Basic Parameters - Chassis Weight (kg) | 2300 |
| Basic Parameters - Chassis Dimensions (mm) | 5800×2100×2400 |
| Basic Parameters - Wheelbase (mm) | 3360 |
| Performance - Maximum Speed (km/h) | 93 |
| Performance - Maximum Gradeability (%) | 20 |
| Performance - Range Under Working Conditions (km) | 240 |
| Cab - Type | Flat Roof, Single Row, Right-Hand Drive, 3 Seats |
| Cab - Width (mm) | 1835 |

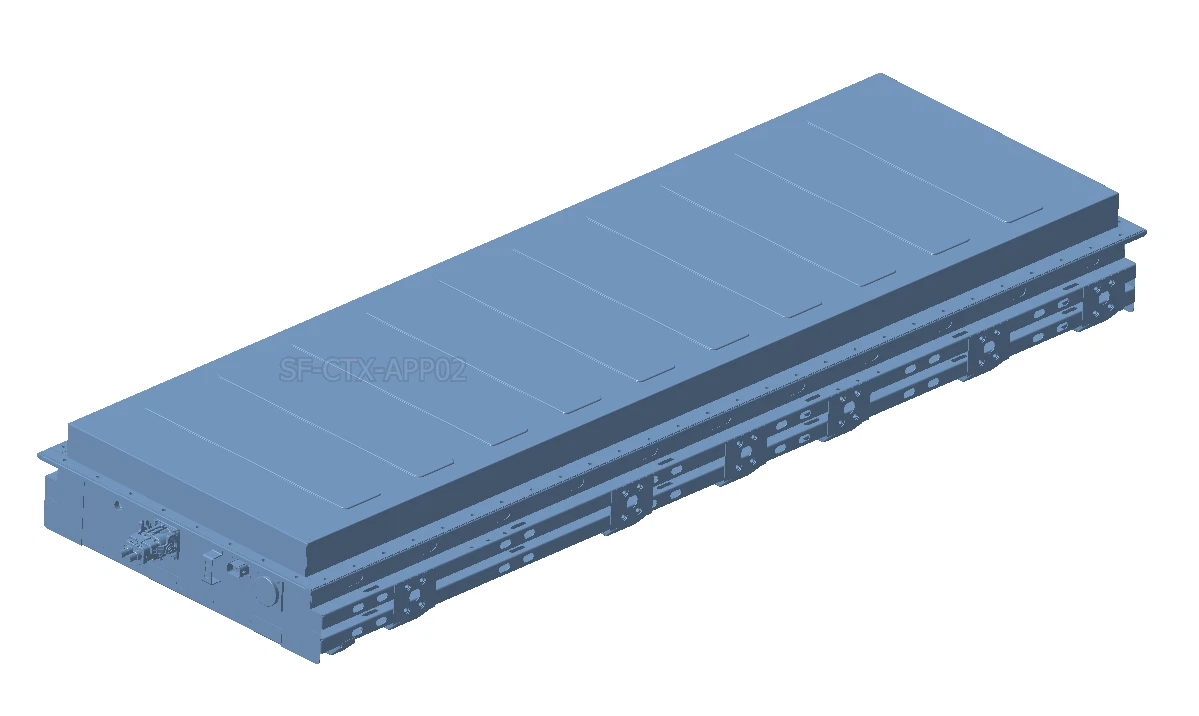

| Electric Systems - Battery Type | Lithium Iron Phosphate (LFP) |
| Electric Systems - Battery Capacity (kWh) | 81 |
| Electric Systems - Charging Method | GB/EU Standard DC Fast Charging |
| Electric Systems - Charging Time (h) | 1.5 |

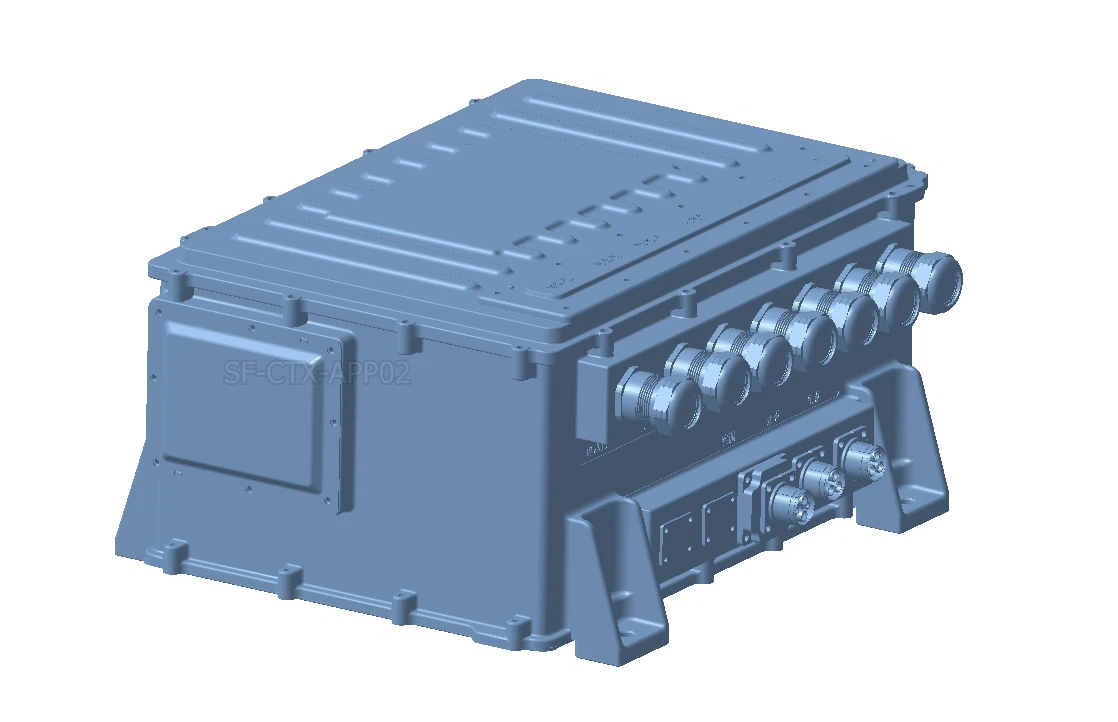

| Electric Systems - Motor Type | Permanent Magnet Synchronous Motor |
| Electric Systems - Motor Power (kW) | 115 |
| Electric Systems - Motor Torque (N·m) | 325 |
| Other - Tires | 7.00R16-8PR |
| Other - Braking System | Hydraulic Brake, Drum Type, ABS |
| Other - Air Conditioning | Refrigerating AC |
| Type | Pure Electric Truck |
| Overall Vehicle Dimensions (mm) | 5995×2150×2480 |
| Cargo Compartment Internal Dimensions (mm) | 4200×2000×500 |

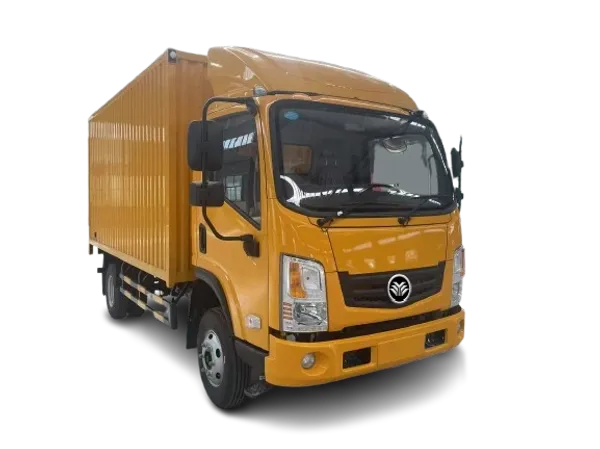

| Type | Pure Electric Cargo Truck |
| Overall Vehicle Dimensions (mm) | 5995*2100*3010 |
| Cargo Compartment Internal Dimensions (mm) | 4120*2040*2100 |
1.Right-Hand Drive Design: Tailored for overseas RHD markets.

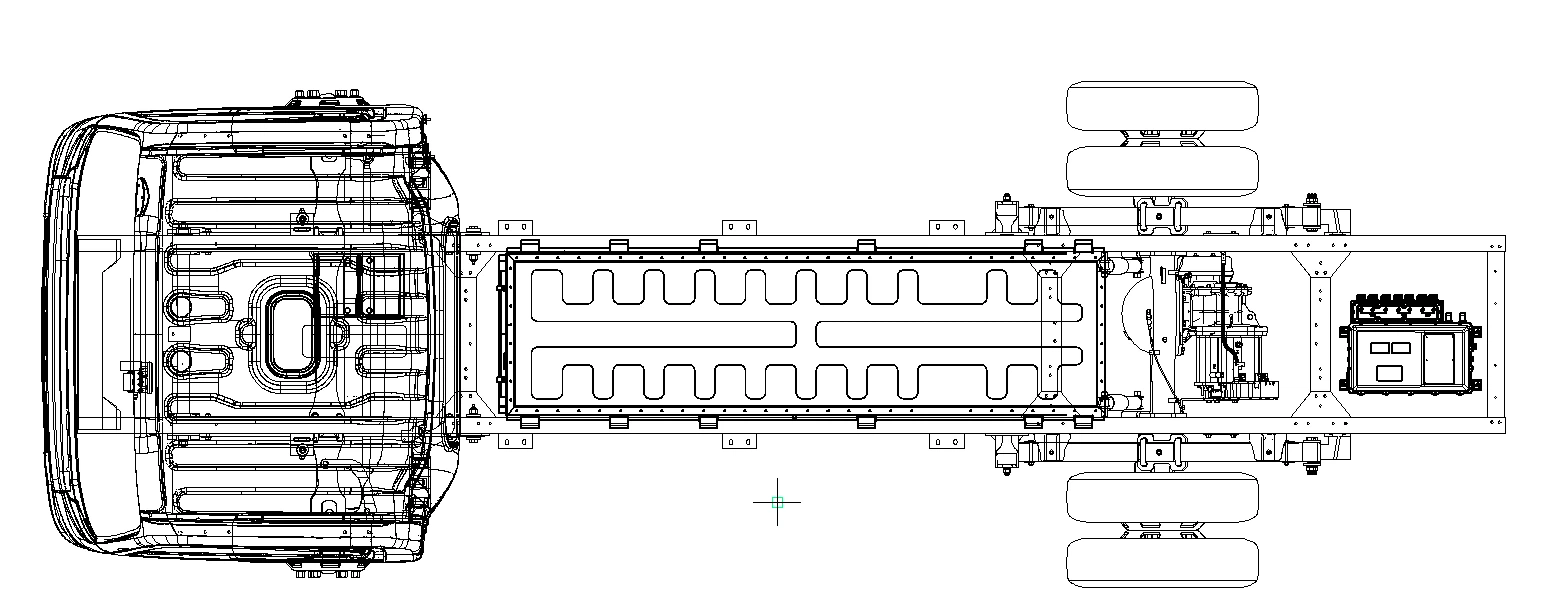

2.Versatile Chassis Design: Suitable for various modifications including mesh van, cargo truck, refrigerated truck, and garbage truck.

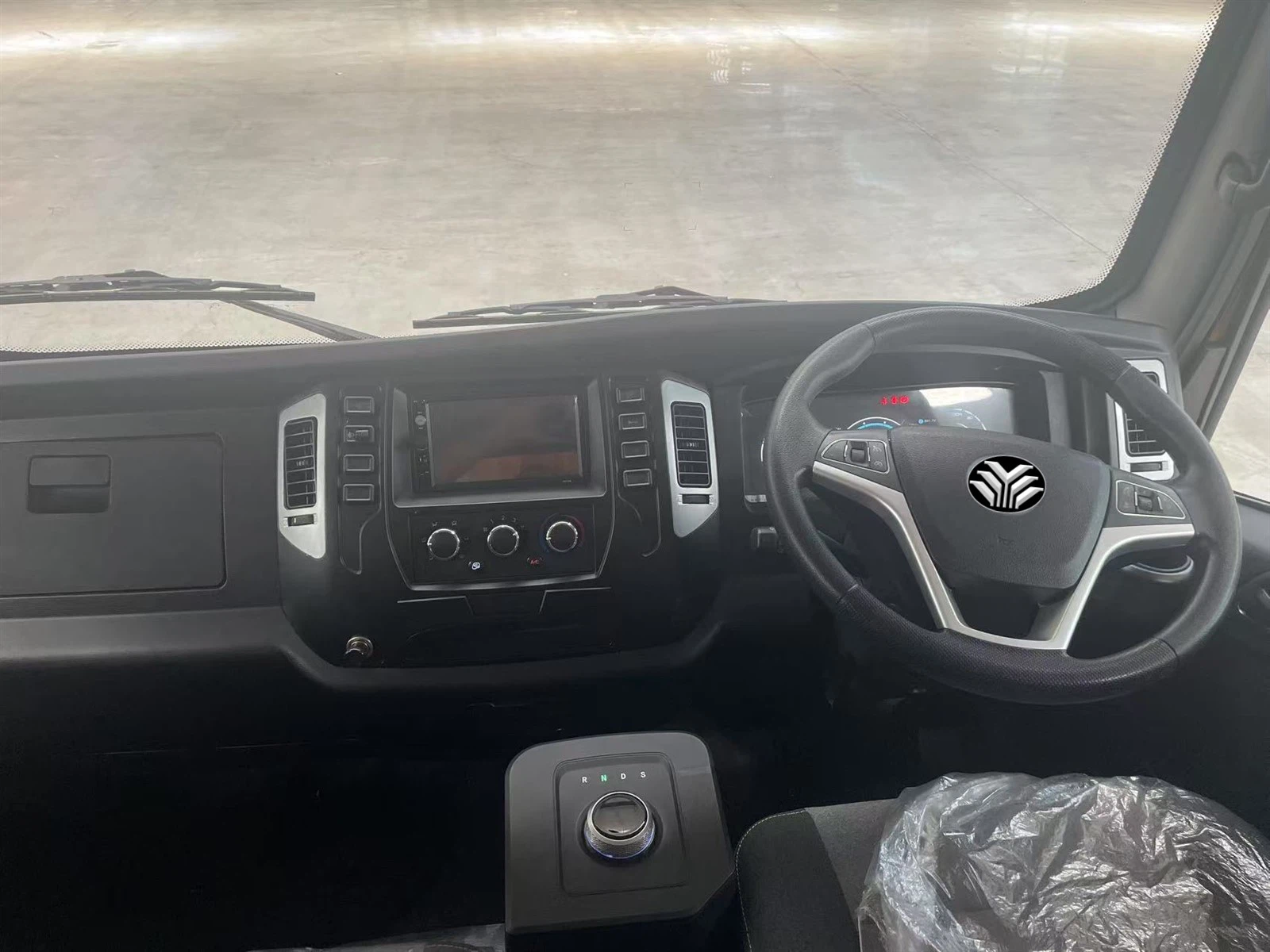

3.High-End Configurations: LCD instrument cluster, MP5 multimedia system, electronic gear shift, multi-function steering wheel, remote keyless entry, rearview camera, and dash cam.
4.Enhanced Driving Comfort: Air-suspension seat, few-leaf spring + twin-tube hydraulic shock absorbers.
