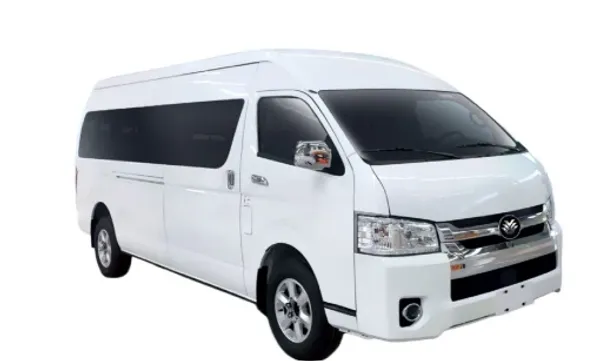

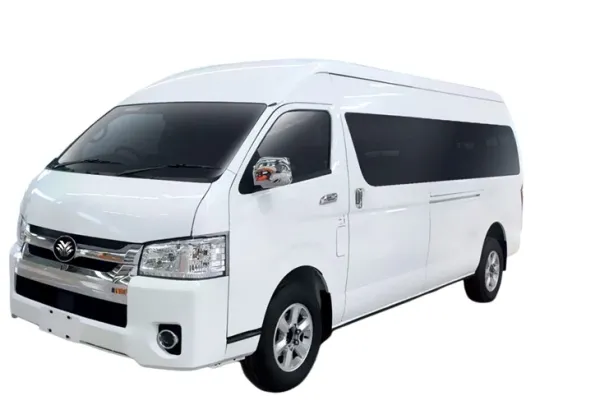

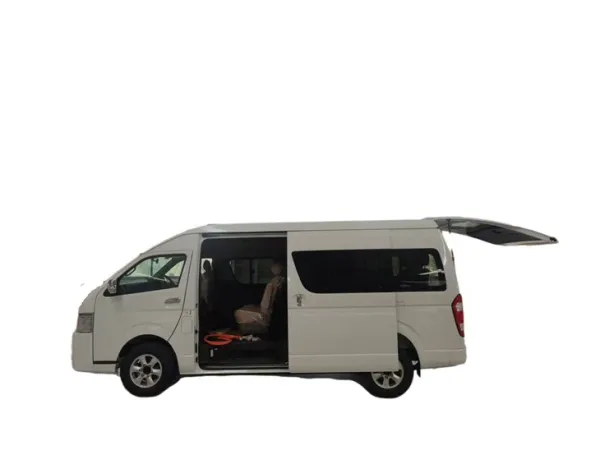

RHD Electric Passenger Van Mini Bus

Details

Product Name 5.4m RHD Electric Bus 6m RHD Electric Bus
Dimensions (mm） 5380×1880×2285 5990×1880×2320
Wheelbase（mm） 3110 3720
Gross Vehicle Weight（kg） 3450 4500
Curb Weight （kg） 2750 2885
Max Speed（km/h） 100 100
Max Gradeability（%） 25 20
Range Under Working Conditions（km） 330 270
Minimum Ground Clearance（mm） 175 180
Seating Capacity 9（Executive Luxury） 17（Standard Fabric）
Drive Mode Rear-wheel Drive (Electric Drive Axle)

Category

Bus

Share to

Send Inquiry

This compact electric mini bus offers flexible development and customization options for body style, seating layout, interior trim, and electronic systems, allowing it to meet specific operational needs, offering zero-emission passenger transport to tourist shuttles, city sightseeing, corporate and hotel staff transportation, school buses, and specialized institution transport. It's an efficient, eco-friendly, and cost-effective electric bus solution suitable for urban and low-mileage applications.

Parameter

Motor Specifications

TypePermanent Magnet Synchronous Motor
Peak Power (kW)100
Peak Torque (Nm)270

Battery Specifications

TypeLithium Iron Phosphate (LFP)
Capacity (kWh)67
Charging MethodGB/EU Standard DC Fast Charging
Charging Time (h)1.5

Chassis & Systems

Body Width (mm)1880, Right-Hand Drive (RHD)
Suspension SystemFront Double Wishbone Independent / Rear Variable Stiffness Leaf Spring
Braking SystemFront Disc / Rear Drum, ABS+EBD, Active Vacuum Booster
Steering SystemElectric Power Steering (EPS)
Tire Specification195R15C / 215/75R16C
Air ConditioningAC without Heater

Standard Features - Exterior

WindowsPower Front Windows, Openable Passenger Windows
MirrorsChrome Power Outer Rearview Mirrors
WipersIntermittent Front Wipers & Washers, Rear Wiper with Electric Defroster & Washer
DoorManual Sliding Side Door, Remote Central Door Locking
LightsHigh-mounted Stop Lamp, Combination Headlamps, LED Lights
SafetyRear Parking Radar, V-protected Front Windshield
GlassPassenger Compartment Dark Tinted Privacy Glass
Wheels4 Aluminum Alloy Wheels + 1 Spare Tire
Exterior DesignChrome Front Grille, Hatch-style Tailgate

Standard Features - Interior

DashboardLuxury Dashboard + 10.1" Smart Infotainment Screen
SeatingSliding Driver & Co-driver Seats (3-Point Seatbelts), Independently Adjustable Passenger Seats (2-Point Seatbelts)
StorageStorage Box Between Driver & Co-driver Seats
FloorPVC Flooring
EntertainmentMP5 Navigation & Rear Camera / Parking Radar, AM/FM Radio with 6 Speakers
ClimateAC System (Front + Roof Outlets)
Convenience2 Negative Ion Air Purifiers, Sun Visors with Vanity Mirrors, USB Ports
SafetyAnti-glare Interior Rearview Mirror, Multi-function Steering Wheel

Products Features

1 . Right-Hand Drive Design: Tailored for overseas RHD markets.

2 . Spacious & configurable interior: Options include 9 executive luxury seats or 17 standard fabric seats

3 . Comfort & convenience: Standard features include AC, 10.1" smart screen, USB ports, air purifiers, and tinted privacy windows

4 . Safety & reliability: ABS+EBD, rear parking radar, dual airbags, and robust suspension system

5 . High-End Configurations: LCD instrument cluster, MP5 multimedia system, electronic gear shift, multi-function steering wheel, remote keyless entry, rearview camera, and dash cam.

Products Details

Right-hand Drive Design

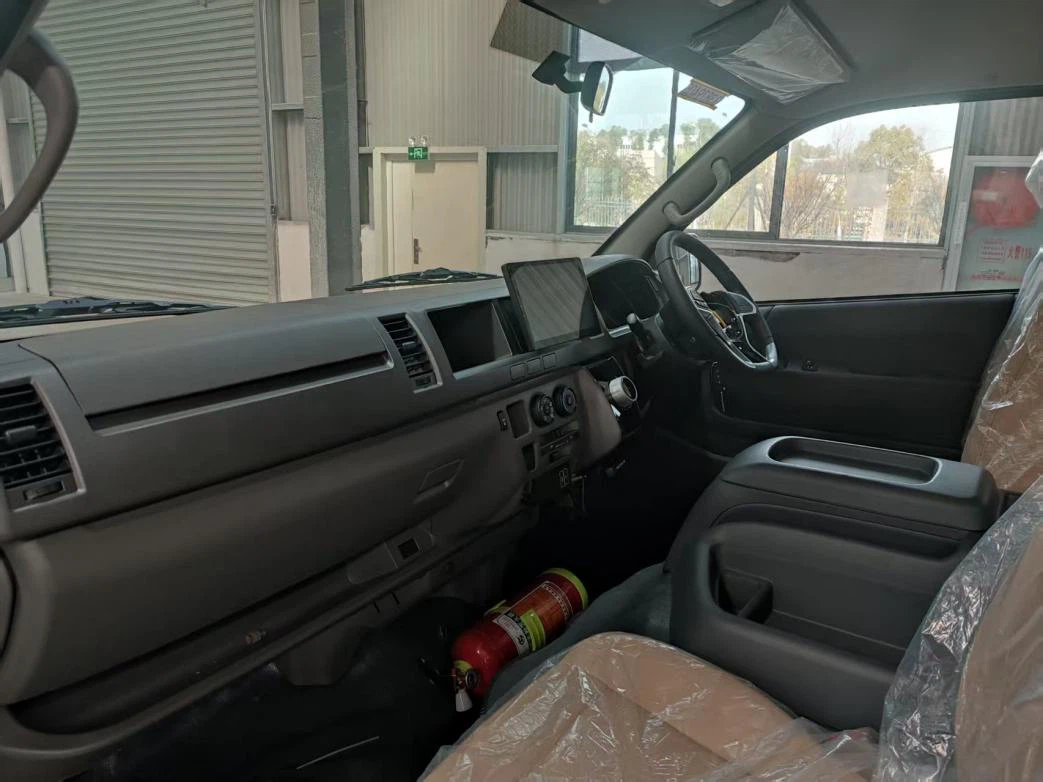

Right-hand drive design 1

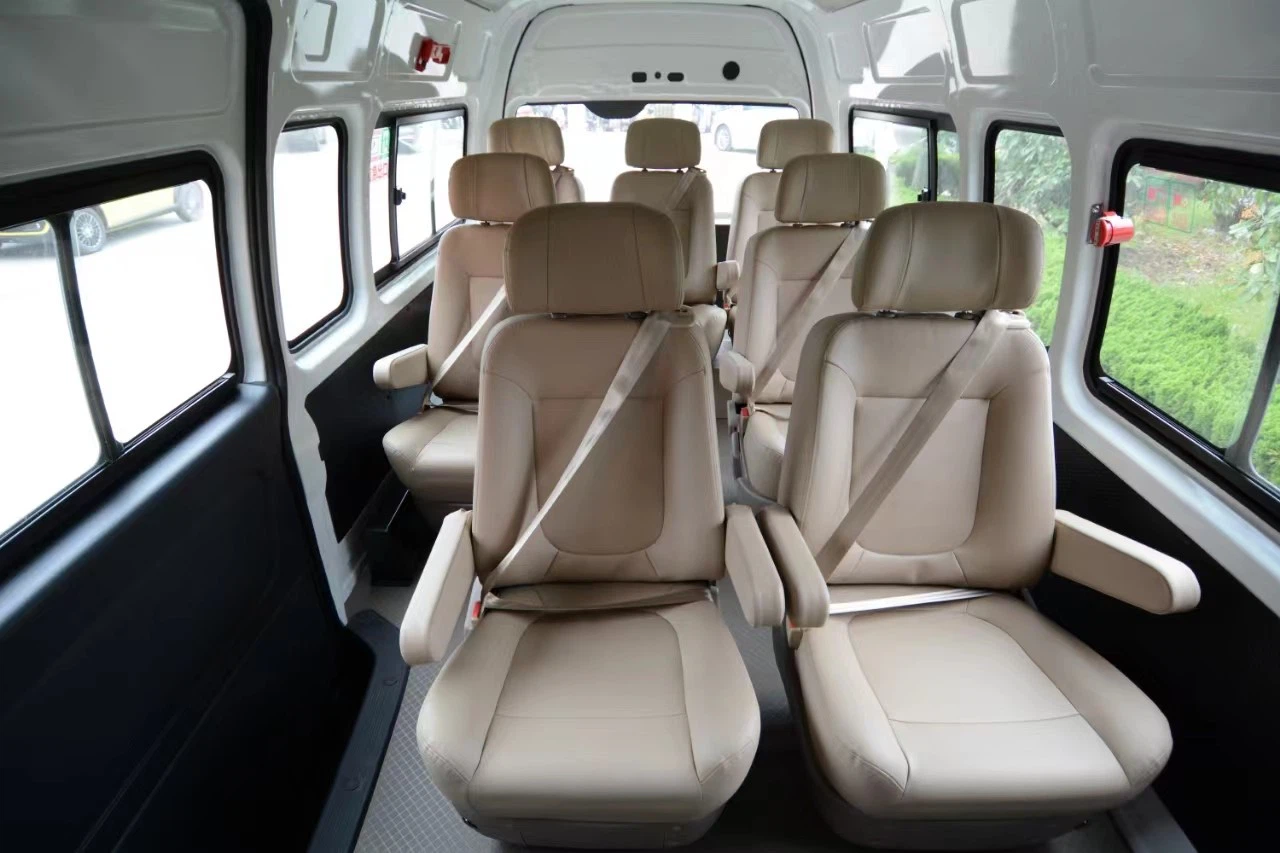

Right-hand drive design 2

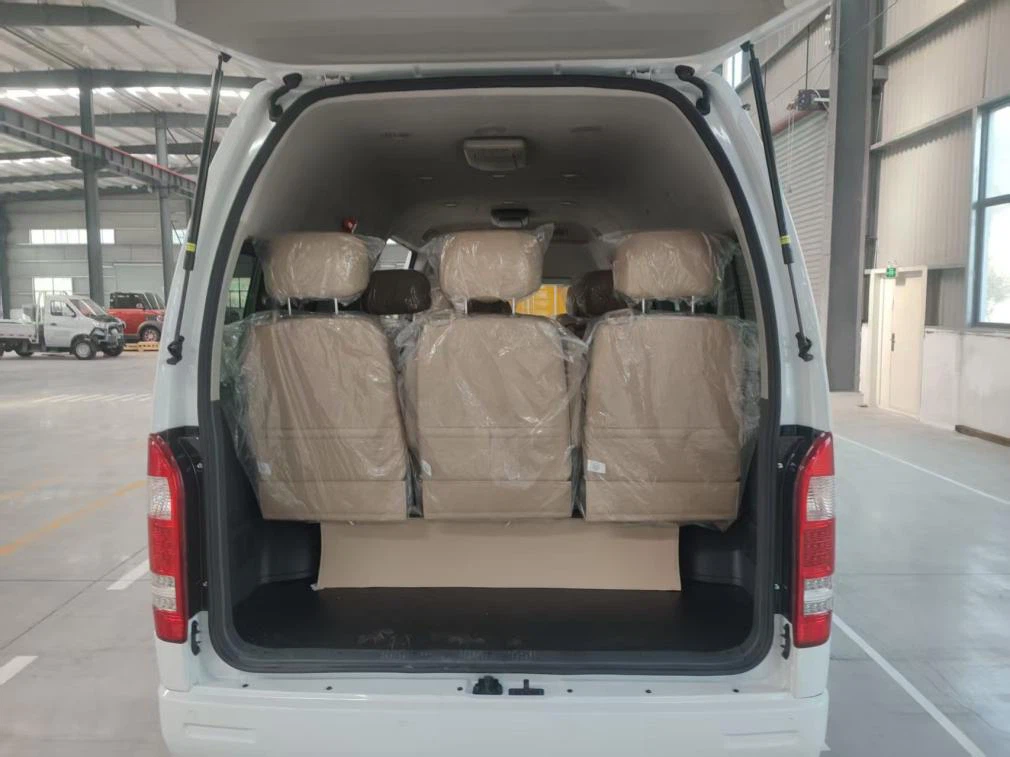

Right-hand drive design 3

Flexible Layout

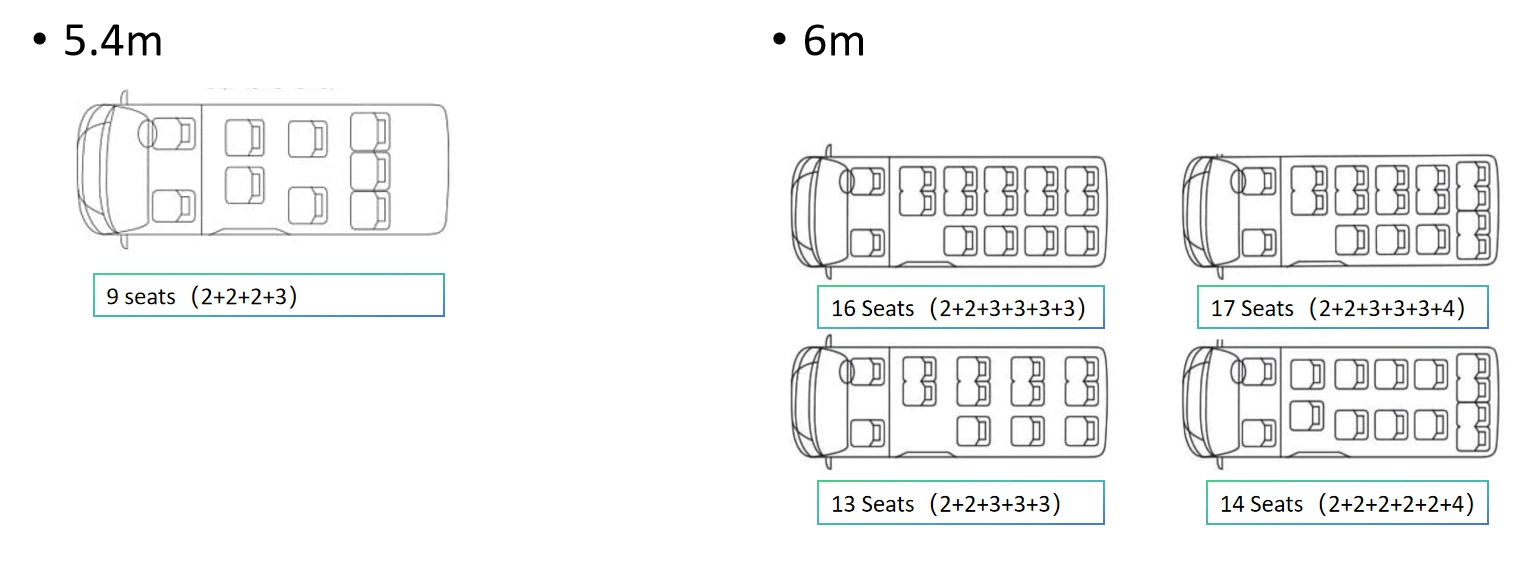

Flexible layout options

Electric System

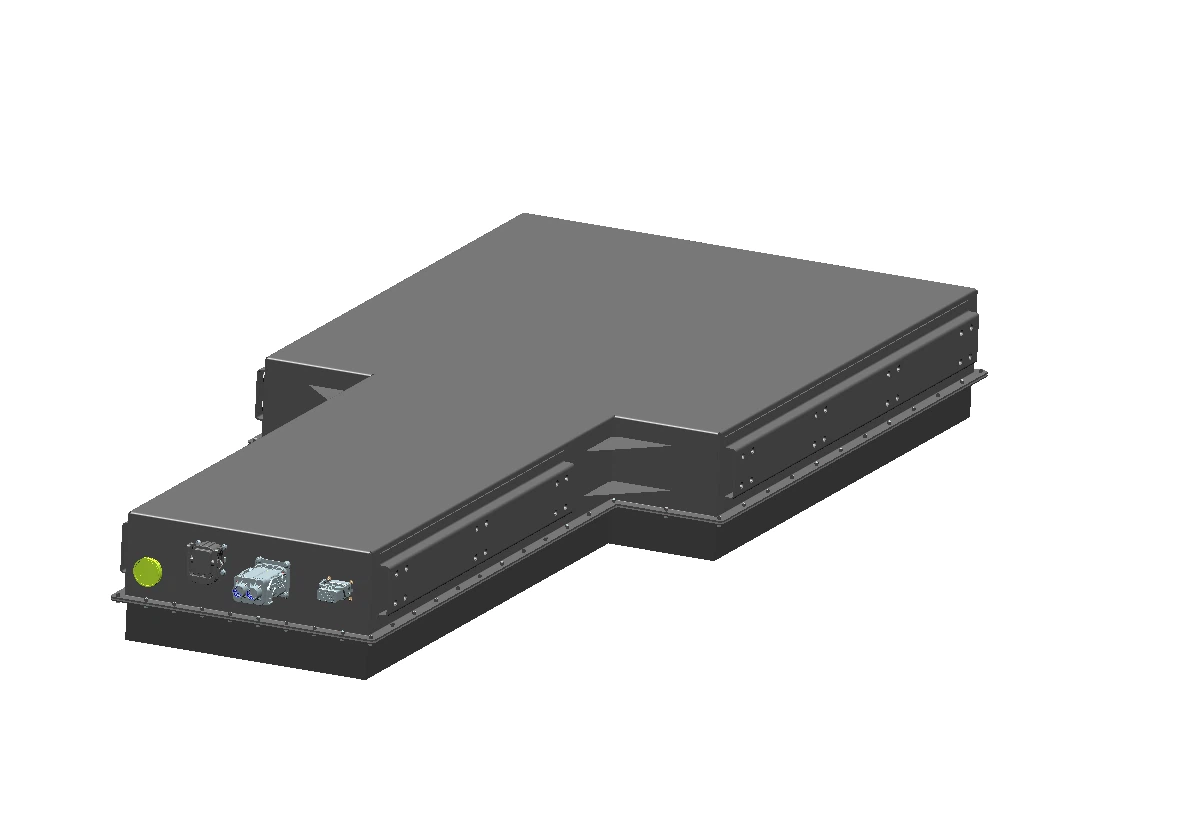

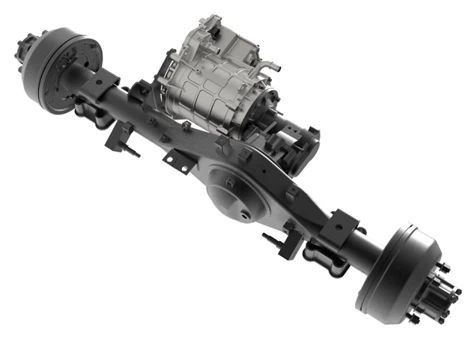

Electric system 1 Electric system 2

Motor Specifications

TypePermanent Magnet Synchronous Motor
Peak Power (kW)100
Peak Torque (Nm)270

Battery Specifications

TypeLithium Iron Phosphate (LFP)
Capacity (kWh)67
Charging MethodGB/EU Standard DC Fast Charging
Charging Time (h)1.5

Chassis & Systems

Body Width (mm)1880, Right-Hand Drive (RHD)
Suspension SystemFront Double Wishbone Independent / Rear Variable Stiffness Leaf Spring
Braking SystemFront Disc / Rear Drum, ABS+EBD, Active Vacuum Booster
Steering SystemElectric Power Steering (EPS)
Tire Specification195R15C / 215/75R16C
Air ConditioningAC without Heater

Standard Features - Exterior

WindowsPower Front Windows, Openable Passenger Windows
MirrorsChrome Power Outer Rearview Mirrors
WipersIntermittent Front Wipers & Washers, Rear Wiper with Electric Defroster & Washer
DoorManual Sliding Side Door, Remote Central Door Locking
LightsHigh-mounted Stop Lamp, Combination Headlamps, LED Lights
SafetyRear Parking Radar, V-protected Front Windshield
GlassPassenger Compartment Dark Tinted Privacy Glass
Wheels4 Aluminum Alloy Wheels + 1 Spare Tire
Exterior DesignChrome Front Grille, Hatch-style Tailgate

Standard Features - Interior

DashboardLuxury Dashboard + 10.1" Smart Infotainment Screen
SeatingSliding Driver & Co-driver Seats (3-Point Seatbelts), Independently Adjustable Passenger Seats (2-Point Seatbelts)
StorageStorage Box Between Driver & Co-driver Seats
FloorPVC Flooring
EntertainmentMP5 Navigation & Rear Camera / Parking Radar, AM/FM Radio with 6 Speakers
ClimateAC System (Front + Roof Outlets)
Convenience2 Negative Ion Air Purifiers, Sun Visors with Vanity Mirrors, USB Ports
SafetyAnti-glare Interior Rearview Mirror, Multi-function Steering Wheel
