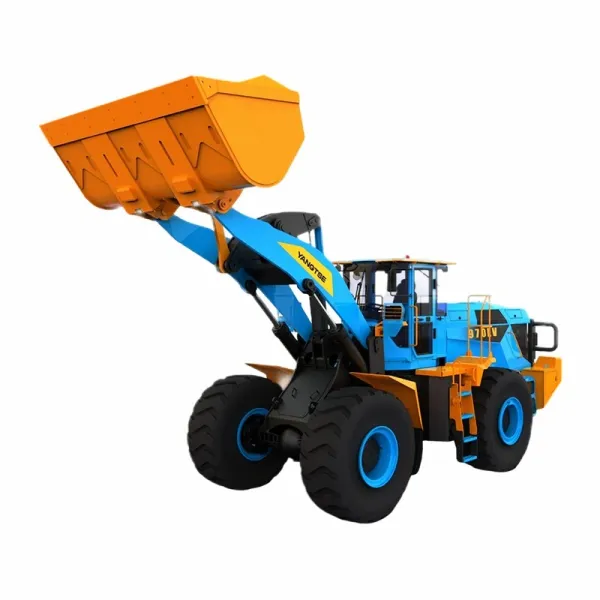

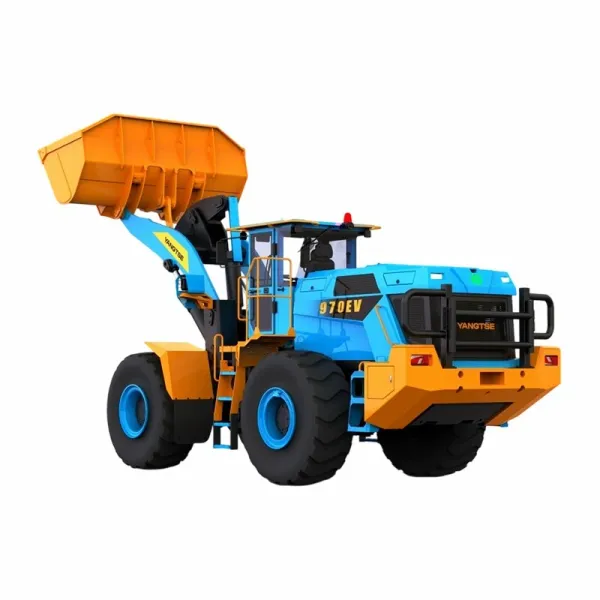

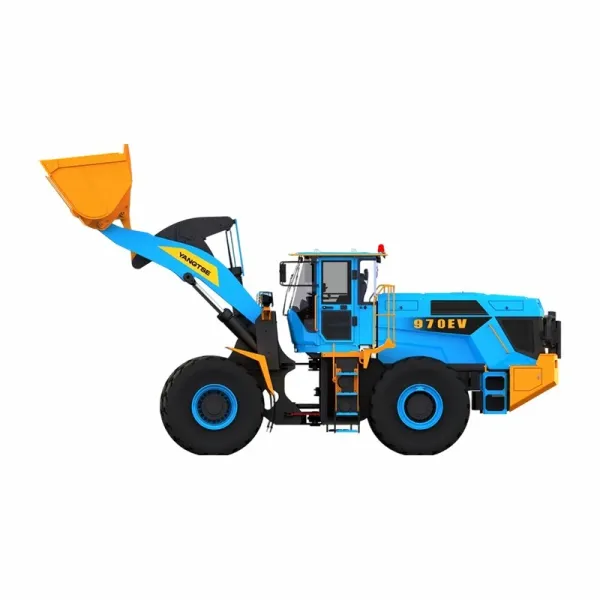

Electric Loader 7T
Details
L×W×H (mm): 9240×3160×3480
Rated power (kW): 245
Rated load capacity (t): 6.8
Operation capacity (t): 23
Bucket capacity (m³): 3.6-5.5
Rated power (kW): 245
Rated load capacity (t): 6.8
Operation capacity (t): 23
Bucket capacity (m³): 3.6-5.5
Category
LoaderShare to
The 7-ton electric wheel loader is a zero-emission heavy-duty machine designed for material handling in construction, mining, and logistics. Powered by high-capacity batteries, it delivers clean, quiet, and efficient operation while eliminating diesel exhaust emissions.
- Battery Capacity: Typically 350 kWh, supporting 6–8 hours of operation per charge.
- Fast Charging: Can recharge to 80% in 1–2 hours with high-power DC chargers.
- Lower Operating Costs: Saves 30–50% on energy expenses compared to diesel loaders.
- Smart Energy Recovery: Regenerative braking improves efficiency.
- Reduced Noise: Ideal for urban construction and indoor operations.
Parameter
Machine parameters | Product Model | YZJ 970 EV |
|
|
Length × Width × Height (mm) | 9240×3160×3480 |
|
| |
Rated power (kW) | 245 |
|
| |
Rated load capacity (t) | 6.8 |
|
| |
Operation capacity (t) | 23 |
|
| |
Bucket capacity (m³) | 3.6-5.5 |
|
| |
Power battery | Rated capacity (kWh) | 350/423 |
|
|
Autonomy (h) | 6-8 |
|
| |
Drive motor | Motor power (kW) | 140/240 |
|
|
Working motor | Motor power (kW) | 105/180 |
|
|
Gearbox | Speed ratio (2 gears) | 2.8/1 |
|
|
Type | AMT |
|
| |
Other Configuration | Work control system | Fully electronically controlled intelligent operation |
|
|
Working hydraulic system | Double pump confluence |
|
| |
Steering hydraulic system | Full hydraulic steering |
|
| |
Service brake system | Full hydraulic brake |
|
| |
Parking brake system | Oil cut brake |
|
| |
Intelligent control | Boom buffer, intelligent shovel loading |
|
| |
Air conditioner | Standard integrated air conditioning |
|
|
Feature
- Full hydraulic brake, more safety.
- Whole vehicle electric pilot control, more convenient.
- Combined large-displacement hydraulic system with pilot control, more efficient.
- High-pressure and large-diameter cylinder, more lifting force and rising force.
Product Characteristic
1. High-density lithium iron phosphate batteries specially designed for loaders with high safety and long cycle life. The battery pack adopts customized die-casting aluminum shell, which significantly improves the anti-vibration performance and the structural strength exceeds the requirements of GB standard.
2. Electronically controlled shift manual transmission designed specifically for loaders. Fast shift response and low impact improve driving comfort. Motor gearbox integrated design, full helical gear, forced lubrication, long service life and low noise.
3. Small turning radius and high stability. The front and rear tire tracks coincide during steering, with low rolling resistance. The articulation adopts large span arrangement, which effectively reduces the articulation load. The frame structure is optimized by applying FEM simulation and analysis technology, and the load bearing capacity of the frame is greatly improved.
4. Integrated design of cab and battery cooling, simplified structure, easy installation and maintenance, and improved reliability. Automatic distribution of cooling capacity according to battery heating and cab cooling demand, realizing full utilization of cooling capacity and reducing energy consumption.
And more:
- The power selection function ensures more appropriate power output in different working conditions, improving economy.
- Intelligent shoveling system provides drivers with more convenient operation, reduces tire slip rate and improves the maneuverability of the whole machine.
- Silent system provides a comfortable environment for the driver.
